SMPTE Cables

Camplex SMPTE fiber optic cables deliver the clarity and high performance that broadcast professionals require. From breakout cables and adapters, power and signal extenders to camera cable jumpers and LEMO fiber connectors Camplex has everything you need.

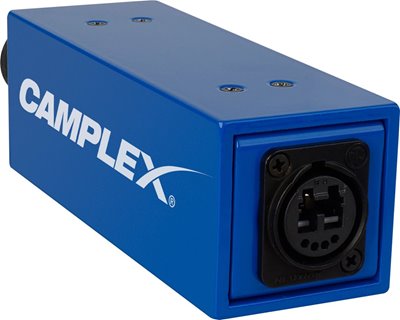

Camplex HYDAP SMPTE to opticalCON DUO Breakout Fiber Adapter

Breakout Adapters - SMPTE

Convert a SMPTE 311m hybrid fiber cable to conventional single mode ST, LC or opticalCON DUO cable with the HYDAP series of robust in-line adapters. Converting SMPTE hybrid cables to conventional fiber cables avoids the cost of additional cables and increases the distance for reliable camera connections. Designed for harsh environments, such as sports broadcasting and stadiums, HYDAP breakout adapters feature a durable aluminum housing and recessed fiber connectors to prevent damage.



Note: HYDAPS are passive SMPTE fiber breakout boxes that allow for simple integration using riser rated duplex cables. Some camera/CCU setups may require continuity between the copper conductors found within a SMPTE fiber connector to remain intact. For such scenarios, models are also available with optional power tap to interface with camera CCU: 5-Pin, 6-Pin or 8-Pin AMP CPC connector or male or female XLR wired to the copper conductors of the SMPTE hybrid connector. Contact your reseller for assistance.

...

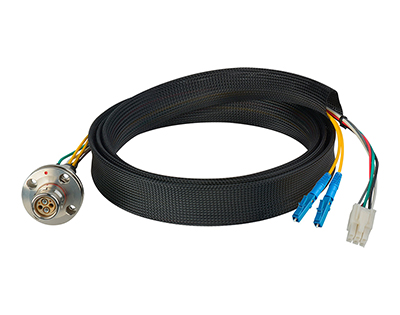

Camplex FCS015A-FR Hybrid Fiber Optic Receptacle Cable SMPTE/ARIB LC

Breakout Cables - ARIB

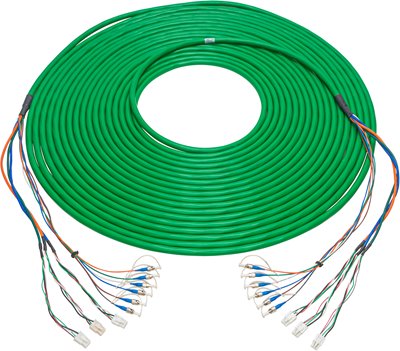

SMPTE internal hybrid distribution breakout cables with Canare FC connector and duplex fiber optic and 6-pin AMP breakouts are designed for use in rack panels, splice trays, adapters, and wall boxes. This SMPTE fiber breakout cable integrates a power line for the TV camera, a control line, and fiber optics for video and audio transmission.

The cable consists of two single-mode fibers, four 20 AWG and two 24 AWG tinned copper conductors surrounding a steel strength element, with an overall tinned copper braid and a flexible PVC blend jacket. Designed for use with HDTV signals, this SMPTE fiber camera cable is compliant with ARIB and SMPTE standards.

Available with ST, SC, or LC connectors with power and in a variety of lengths.

...

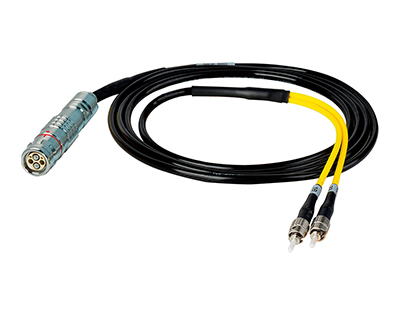

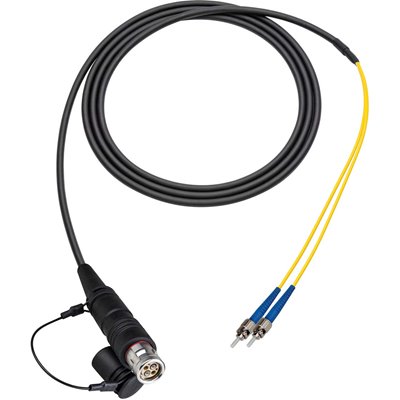

HF-FUWST-BO-06 Camplex LEMO FUW to Dual ST In-Line Fiber Optic Breakout Cable

Breakout Cables - External

Inline SMPTE hybrid breakout cable series with LEMO connectors to duplex SC, ST, and LC fiber optic breakouts are used in rack panels, splice trays, adapters, and wall boxes. Available models include 8 power options or no power option. Designed for use with HDTV signals, the camera cable is compliant with ARIB and SMPTE standards.


Available Models:
FUW Straight Plug

FMW Fixed Plug
PUW Free Plug
PBW Fixed Socket

Note: Passive SMPTE fiber breakout cables allow for simple integration using riser rated duplex cables. Some camera/CCU setups may require continuity between the copper conductors found within a SMPTE fiber connector to remain intact. For such scenarios, contact your reseller for assistance.

...

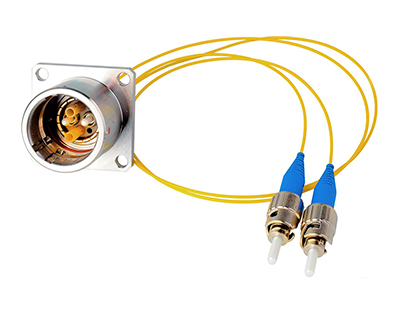

HF-EDWBI-ST-06IN Camplex LEMO EDW to Dual ST Internal Fiber Optic Breakout Cable - 6 Inch

Breakout Cables - Internal

Internal Breakout Cables are built with LEMO SMPTE connectors to duplex SC, ST or LC fiber optic breakouts. Designed for panel mounting in blank panels or as replacements in hybrid devices.

Available models include Fixed Plug (FXW) or Fixed Socket (EDW) and 8 power options or no power option. Designed for use in SMPTE rack panels, splice trays, adapters and wall boxes. This SMPTE fiber cable series is UPC machine polished to meet SMPTE 304mM/311M standards.

...

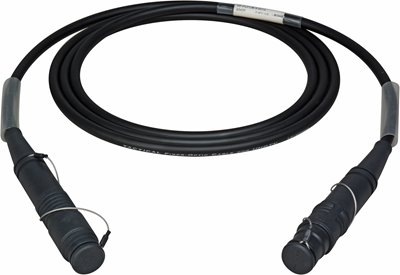

HF-FCFFCM-T Tactical HFO SMPTE Hybrid Fiber Optic Camera Cable

Cables – Canare SMPTE 311M/304M

Hybrid SMPTE fiber cable assemblies feature Canare 9.2mm SMPTE cable, Canare HFO SMPTE connectors, and a tear resistant polyurethane jacket. The lightweight and flexible cables are designed with a heavy duty, abrasion-resistant thermoplastic polyurethane jacket with a minimal bend radius of 9.2mm for outside broadcasts in harsh environments. Each LEMO compatible Canare HFO SMPTE fiber connector is constructed with a detachable alignment sleeve and insulator.

All assemblies are multi-stage machine polished and tested for <.55db RL. Suitable for fiber optic TV broadcast, in the studio and outside, these slim and flexible cables are available in two versions:

Heavy-duty: HF-FCFFCM-T Tactical HFO SMPTE Hybrid Fiber Optic Camera Cable Canare FCFA to FCMA

Standard: HF-FCFAFCMA HFO SMPTE Hybrid Fiber Optic Camera Cable Canare FCFA-FCMA M-F

...

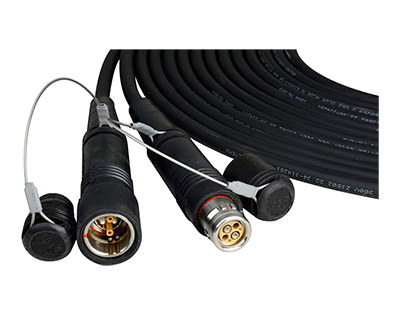

Camplex HF-FUWPUW Camera Cables with LEMO SMPTE Fiber Connectors

Cables – LEMO SMPTE 311M/304M

SMPTE fiber camera cable assemblies for outside broadcast feature LEMO fiber cable connectors and harsh environment cable. This assembly integrates power line for TV camera, control line, and fiber optics for video and audio transmission. All assemblies are multi-stage machine polished and tested for <.55db RL.



Designed for fiber optic TV broadcast, straight plug cables are available with several cable options:
HF-FUWPUW-7 Series – Slim and Flexible
HF-FUWPUW-G Series – Gepco Outside Rated Cable
HF-FUWPUW-M Series – Furukawa Mobile
HF-FUWPUW-S Series -  Belden Studio Indoor
HF-FUWPUW-T Series – OCC Tactical / Harsh Environment

Fixed plug HF-FMWPUW-M Series - Furukawa Mobile

...

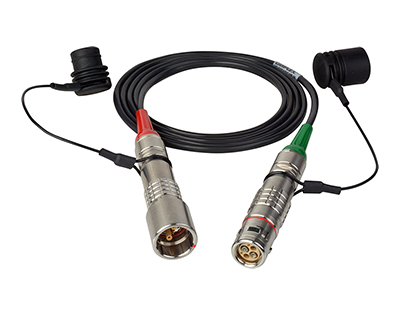

HF-STEADICAM SMPTE Camera Cable Jumpers with LEMO connectors

Camera Cable Jumpers

Lightweight and flexible HF-STEADICAM jumpers are designed for use with portable camera stabilizers, such as the Steadicam, and camera jibs to provide unrestricted movement without the weight. The steel strength member has been removed from the cable for increased flexibility and ease of use. With thin Mohawk 4.2mm SMPTE cable and durable LEMO FUW/PUW connectors, the HF-STEADICAM is a reliable short distance interface between the camera and a standard SMPTE cable for signal transmission.


CHECK camera and Steadicam platform type to determine power cable requirements before ordering. Camplex HF-STEADICAM SMPTE jumpers are designed to operate with local power. These assemblies use lighter AWG power conductors and may not be suitable for applications where the power is provided by the CCU.



NOTE: Maximum available length is 10 feet. See our SMPTE cable offerings for any length over 10 feet.

...

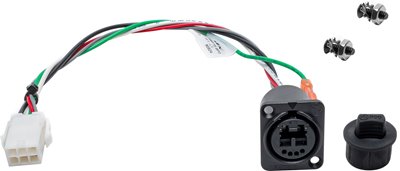

Camplex HF-OCSMPTE-BP3 opticalCON DUO SMPTE Chassis with Pre-wired Copper to BP3 Style 6-pin AMP Connector - NO FIBER

The Camplex HF-OCSMPTE-BP3 is a pre-terminated opticalCON DUO SMPTE chassis with copper wires to our standard BP3 style 6- ...

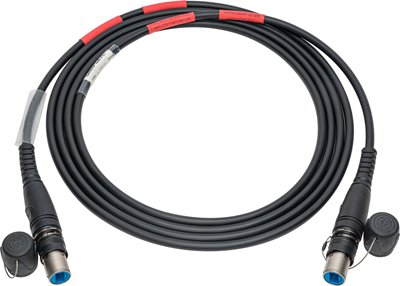

Camplex opticalCON DUO SMPTE 311 Single Mode Fiber Optic Tactical Cable & Reels

Camplex tactical opticalCON SMPTE fiber cables and reels feature opticalCON DUO connectors and OCC tactical cable designed ...

Camplex SMPTE Riser Breakout Cable

A breakout cable is a type of power connector that contains multiple individual cables within a single outer jacket. It is ...

Camplex Triple SMPTE Stadium Cable

This inline SMPTE hybrid breakout cable from Camplex provides a more cost effective way to achieve a SMPTE run when connec ...

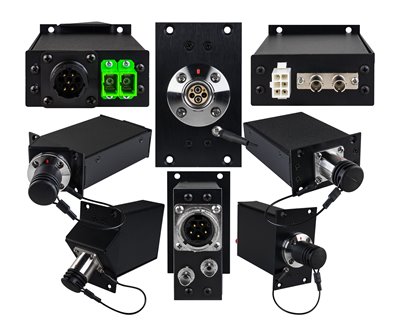

Camplex HYMOD Interface SMPTE Fiber Patch Panel System

HYMOD - Modular SMPTE Interfaces

The HYMOD Interconnect Fiber Patch Panel System for SMPTE cable interfacing features a modular design with several fiber connector to connector options with power configurations and is housed in black anodized metal enclosures. Modules can be flush mounted or recessed in the rack. Available in 45 degree angled, 1RU and 2RU versions. Use with Camplex HYMOD SMPTE Modular Frame Kits and accessories.

Standard fiber connectors - LC, ST, SC APC, SC UPC

LEMO SMPTE connectors - FXW fixed plug, EDW fixed socket

Neutrik - opticalCON DUO

Power options:
5-Pin, 6-Pin, 8-Pin AMP
7-Pin CPC Normal
7-Pin CPC Reverse

1RU Rack Frame holds up to 6 HYMODS
2RU Rack Frame holds up to 8 HYMODS

...

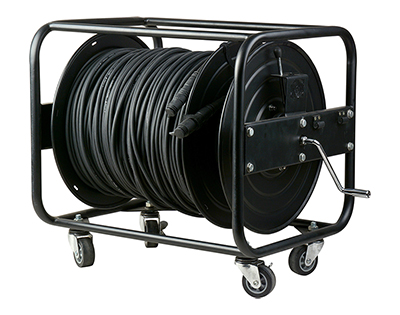

Camplex HF-TR7SMPTE-0250 Gepco Mini 7.8mm Bend Insensitive Camera Cable with LEMO SMPTE Fiber Connectors on JackReel F4 - 250 Foot

LEMO SMPTE Cable Reels

SMPTE fiber camera cable assemblies on reels for outside broadcast feature LEMO FUW-PUW fiber cable connectors and harsh environment cable. These SMPTE fiber camera cable reel assemblies are ideal for mobile trucks, outdoor venues, and permanent outdoor installations in rugged locales where strength and durability are required without affecting performance.

Due to varying cable diameters and lengths, Camplex reel assemblies may include different features to protect and manage cable ends such as coiling rings, hinged latching doors, or slotted disk dividers.

Designed for fiber optic TV broadcast, cables are available with three cable options:
HF-TR7SMPTE Series – 7.88mm Cable
HF-TRMSMPTE Series – Furukawa Cable
HF-TRTSMPTE Series – Belden 9.2mm Cable

...

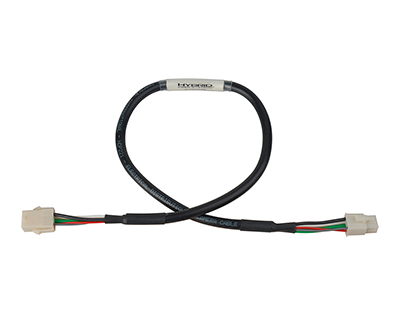

HF-PS8PS8 SMPTE Power & Signal Extension Cable

Power & Signal Extension

SMPTE Power and Signal Extension cables are designed for hybrid fiber distribution systems for rack to rack broadcast infr ...

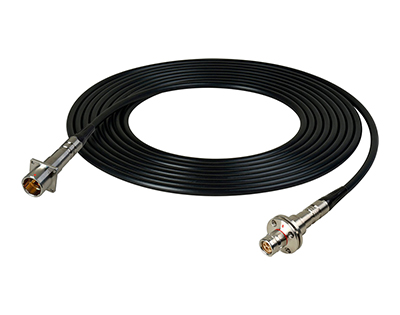

Camplex HF-FMWPBW-R-0025 CMR Riser Rated Belden Camera Cable with LEMO SMPTE Fiber Connectors.

Riser Rated Cables

Multistage cables feature LEMO SMPTE fiber connectors and Belden 96921  UL listed CMR riser rated cable. This SMPTE fiber breakout cable integrates power line for TV camera, control line, and fiber optics for TV broadcast video and audio transmission. All assemblies are multistage machine polished and tested for <.55 db RL.

APPLICATIONS
Permanent indoor installation trays
Conduit or shafts between floors

...
