Home  :  Home : Products : Tactical Cables

Tactical Cables

Broadcasters depend on rugged Camplex tactical cables to provide reliable performance in harsh environments.

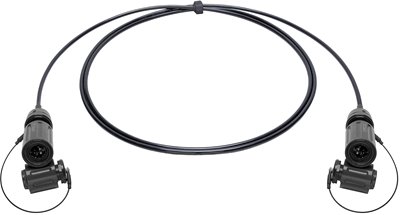

Camplex CMX-X3Q QPC QFoca Fiber Optic Assemblies

These tactical Camplex assemblies feature QPC's QFoca Hermaphroditic Tactical Connector Line engineered for Harsh Envi ...

Product Information

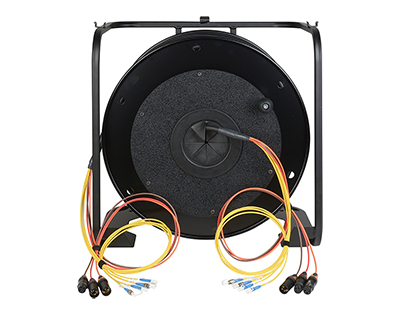

Camplex HF-ENG4LC-0250 4 Channel Single Mode LC Fiber & 3 Channel XLR Audio ENG Tactical Reel

Hybrid ENG Reels

Designed for outside broadcast and live event production, the HF-ENG hybrid tactical fiber optic camera cable is pre-loaded on a reel and features 4 channels over single mode connections for camera send and receive, and 3 balanced XLR lines for audio transmission and intercom. This series is made with outdoor rated tactical fiber cable and multichannel audio for any camera utilizing a portable SDI over fiber field transmission system. Shielded audio pairs prevent mic and line level signal crosstalk and external interference. Audio channels feature industry standard Neutrik XLR connections for the most reliable audio interconnect..


Rugged metal reels feature a larger drum designed for fiber bend radius requirements and rubber grommets that protect fanouts and provide easy access. The 3-position cam-lock brake allows for secure cable positioning.

Available options:
4 Channel ST
4 Channel LC
2 Channel ST & 2 Channel LC
4 Channel opticalCON QUAD



...
Product Information

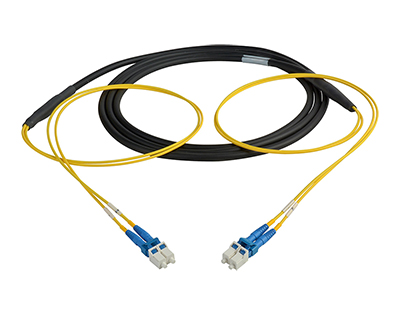

Camplex CMX-TS02LC-0010 2 Channel LC Fiber Single Mode Tactical Cable

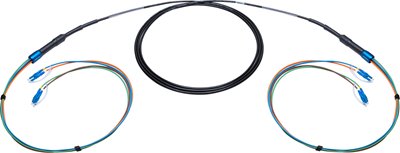

Multi-Channel Cables & Reels

Cost-effective multichannel cables and reel assemblies are designed for multiple deployments for outside production using tactical fiber optic cable and Senko connectors. Designed for harsh environments with highly flexible, tight-buffered tactical cables with internal aramid strength members for crush resistance and a polyurethane outer jacket. Camplex fiber assemblies are terminated and tested to exceed the industry standard overall return loss of > 50dB and insertion loss of < 0.5dB. As well as meet GR-326 core interferometric testing standards.

HF-TS & HF-TR series now includes tactical QPC breakout kits, rugged color-coded fanouts for easy channel identification, and premium dust caps for superior connector protection.



Available Options
Fiber fanout: 2, 4, 8, 12, or 24 channels, single mode or multimode fiber cable
Fiber connectors: ST, SC, LC






Fiber optic cable reel:
Due to varying cable diameters and lengths, Camplex reel assemblies may include different features to protect and manage cable ends such as coiling rings, hinged latching doors, or slotted disk dividers.

...
Product Information

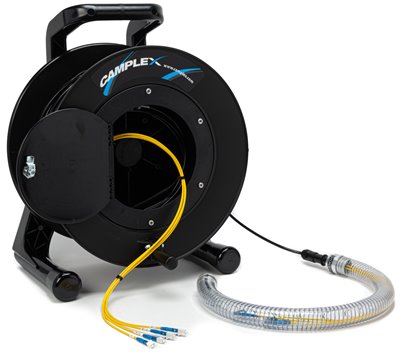

HF-TRP04LC-0500 4 Channel Tactical Fiber Cable on Reel

Pro-Tac Reel Series

Pro-Tac single mode tactical fiber optic cable series with polyurethane jacket on a reel features fanouts in a protective pulling sleeve to withstand multiple deployments in outside broadcast, industrial, mining, and petrochemical environments. Cable is highly flexible and crush resistant with internal aramid strength members and a polyurethane jacket that bears military vehicles. Protective sleeve is easily opened for access to the tactical fiber fanouts. All assemblies are multi-stage machine polished and tested for <.55db RL.



Due to varying cable diameters and lengths, Camplex reel assemblies may include different features to protect and manage cable ends such as coiling rings, hinged latching doors, or slotted disk dividers.

Available in 4, 8 or 12 fanouts with ST or LC fiber connectors and various lengths.
4 channel - 24 inch fanout with protective pulling sleeve
8 channel - 36 inch fanout with protective pulling sleeve
12 channel - 36 inch fanout with protective pulling sleeve

...
Product Information

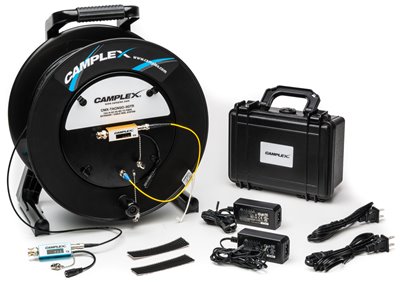

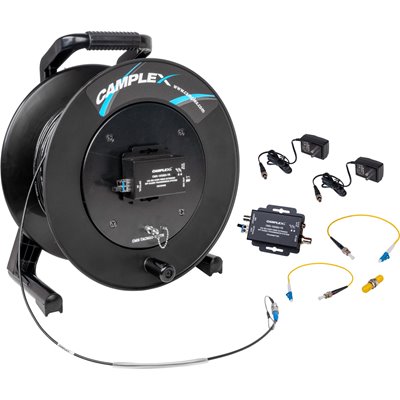

Camplex CMX-TACNGO Signal Extender & Tactical Reel System

Signal Extender & Reel Systems

Convert and extend 4K HD/3G/6G/12G-SDI, HDMI, 100BaseT Ethernet, and audio signals over tactical fiber optic cable using Camplex TAC-N-GO systems. Complete, cost-effective, field deployable fiber optic converter systems are connected to a cable reel. All models include 1000 feet of tactical single mode fiber optic cable preloaded on a rugged cable reel as well as power supplies for rapid field deployment in any environment.

The TAC-N-GO series feature simple adjustments to meet your deployment requirements by allowing either the transmitter or receiver to be attached to the reel.



  •  Ideal for Outside Broadcast, Live Events, & Field Productions
  •  Options Include Converter/Extenders with SFPs, IR Control, RS232, & More
  •  Attach the Transmitter or Receiver to the Reel Depending on Your Application
  •  Preloaded Cable Reel - 1000 Feet of High-Performance Tactical Fiber Cable
  •  Power Supplies, 3M Dual Lock Fasteners, & Accessories Included with Each Model
...
Product Information

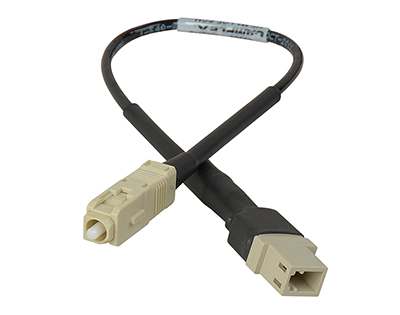

Camplex HF-M1-LCF-SCM TAC1 Tactical Fiber Adapter Cable

TAC1 Adapter Cables

Strong, lightweight and durable tactical fiber adapter cables are designed with military TAC1 cable for rugged commercial and professional broadcast applications in harsh environments. Designed to withstand crush and impact after deployment, these adapters allow quick changes between LC, SC, and ST fiber cable connectors.

Available options:

OM1 multimode
OM3 multimode
Single mode

Female to male fiber cable connectors: LC, SC, ST, APC
Cable Length: 6 Inches boot to boot (excludes connectors)

...
Product Information

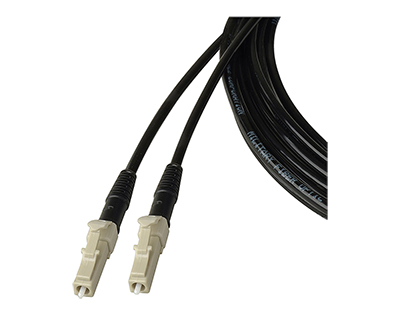

Camplex HF-T1M1-LC-0010 Simplex OM1 Multimode LC Fiber Optic Tactical Cable 10 Foot

TAC1 Cables

The single channel TAC1 tactical fiber optic cable with a polyurethane jacket is designed for broadcast and pro-audio applications requiring an outdoor rated crush and impact resistant design. Assemblies are machine polished and interferometer tested to industry standards.

Available in single mode or multimode fiber with a variety of connector options and various lengths.

...
Product Information

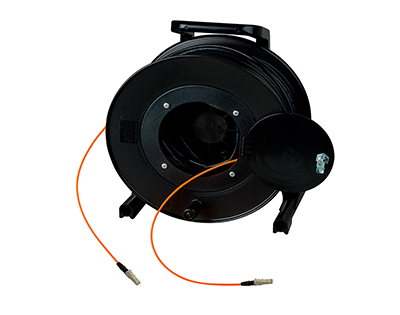

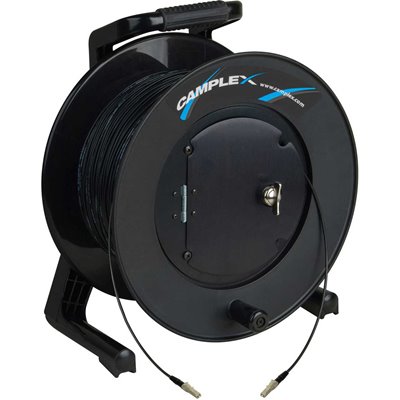

HF-TR1M1-LC-1000 TAC1 Simplex 1 Channel OM1 Multimode LC Fiber Optic Tactical Cable Reel 1000 Foot

TAC1 Reels

The single channel TAC1 tactical fiber optic cable preloaded on a reel with a polyurethane jacket is designed for broadcast and pro-audio applications requiring an outdoor rated crush and impact resistant design. Assemblies are machine polished and interferometer tested to industry standards.
Available in single mode or multimode fiber with a variety of connector options and various lengths.

Due to varying cable diameters and lengths, Camplex reel assemblies will include different features to protect and manage cable ends such as coiling rings, hinged latching doors, or slotted disk dividers.

...
Product Information

TiniFiber 2, 4 & 12-Channel LC-Single Mode Armored Tactical Fiber Optic Snakes & Reels

The Camplex TiniFiber armored tactical fiber series features 2, 4, and 12 channel lightweight armored snakes and reels com ...

Product Information

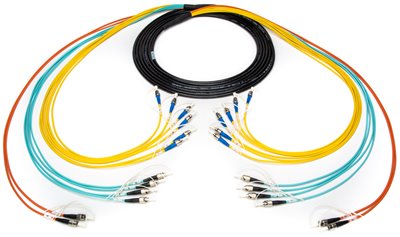

CMX-TASST-0025 TAC-ALL 12 Channel Mixed Mode Fiber Optic Tactical Cable

Mixed Mode Cables

TAC-ALL fiber optic cables include 12 channels of varied mode fibers in a single jacket: six single mode, four OM3 multimode, and two OM1 multimode. Fibers can be terminated with LC, ST, or a combination of LC and ST connectors. The compact TAC-ALL mil tac cable avoids the expense of separate cables for the use of mixed hardware and cable fiber modes, and simplifies installation and connections. With a cable diameter of 6.5mm/0.26 inches, the rugged, yet lightweight, assembly is ideal for harsh environments in outside broadcast and other applications with limited space, and where deployment and retrieval for reuse is required.



Available with ST, LC, SC connectors and several standard lengths as well as preloaded on reels.

FEATURES

  • 12 Channels of Varied Fiber Modes in One Cable Reduces Space Required

  • Designed for Military Tactical Field Use & Commercial Applications

  • Lightweight and Rugged Cables for Outdoor Broadcast

  • Core-locked Jacket Improves Mechanical Performance

  • Polyurethane Jacket is Abrasion, Cut, and Chemical Resistant

  • Cables are Flexible and Crush Resistant

...
Product Information
