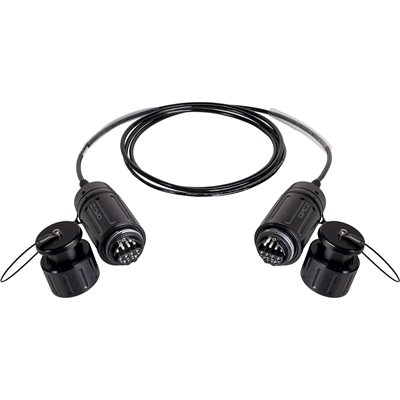

CMX-X3Q04S
4-Fiber QPC QFoca TFOCA-II Compatible Single Mode Fiber Optic Cable

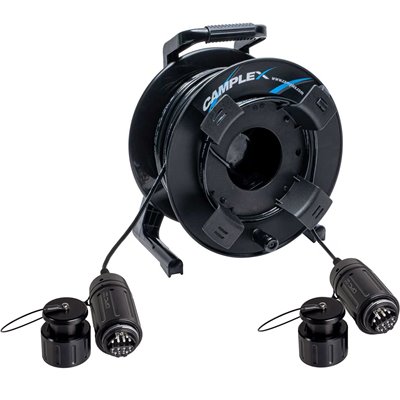

CMX-X3Q04SR
4-Fiber QPC QFoca TFOCA-II Compatible Single Mode Fiber Optic Cable on Reel
CMX-X3Q04M

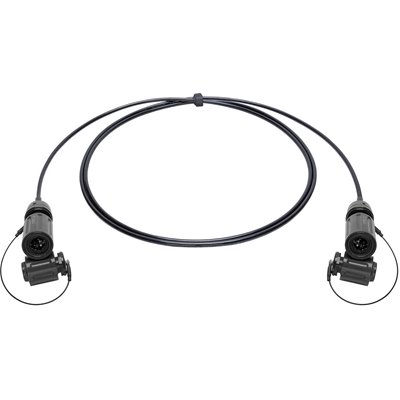

4-Fiber QPC QFoca TFOCA-II Compatible Multimode Fiber Optic Cable
CMX-X3Q04MR

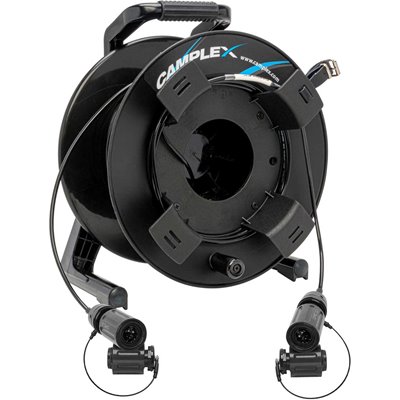

4-Fiber QPC QFoca TFOCA-II Compatible Multimode Fiber Optic Cable on Reel
- 4 Channel Hermaphroditic Physical Contact Connector System
- Designed to MIL-DTL-83526/16 (Plug) & MIL-DTL-83526/17 (Jam Nut Receptacle)
- QFoca Intermateability: Amphenol TFOCA-II, OCC TFOCA 2, Delphi DFOCA, Glenair GFOCA
- Sealed to IP68 Rating
- Lightweight MIL-Tactical Cable Ideal for use in Harsh Environments Where Deployment and Retrieval for Reuse are Required
Camplex Tactical 4 Channel Single Mode Fiber:
- Fiber Type: Bend Tolerant Single Mode
- Core/Cladding Diameter (µm): 9/125
- Wavelength (nm): 1310/1550
- Maximum Cables Attenuation (dB/km): 0.4/0.4
- Primary Coating Diameter (µm): 245
- Secondary Coating Diameter (µm): 900
- Zero Dispersion Slope (ps.nm2-km): 0.092
- Proof Test Level (kpsi): 100
- Jacket Material: Polyurethane
- Buffer Material: Hard Elastomeric
- Cable Diameter: 0.22in (5.5mm)
- Impact Resistance: 1500 impacts
- Crush Resistance: 1800 N/cm
- Max Tensile Load:
- Installation: 1,800 N (400 lbs)
- Operating: 600 N (130 lbs)
- Min Bend Radius:
- Installation: 2.2in (5.5cm)
- Operating: 1.1in (2.8cm)
- Temperature:
- Operating: -40°F to 185°F (-40°C to +85°C)
- Storage: -94°F to 185°F (-70°C to +85°C)
Camplex Tactical OM4 Multimode Fiber:
- Fiber Type: Laser Optimized Bend Tolerant OM4
- Core/Cladding Diameter (µm): 50/125
- Numeric Aperture: 0.2
- Wavelength (nm): 850/1310
- Gigabit Ethernet Distance (m): 1040/600
- 10-Gigabit Ethernet Distance (m): 550/300
- Maximum Cables Attenuation (dB/km): 3.0/1.0
- Minimum Laser EMB Bandwidth (MHz-km): 4700/500
- Minimum OFL LED Bandwidth (MHz-km): 3500/500
- Primary Coating Diameter (µm): 245
- Secondary Coating Diameter (µm): 900
- Proof Test Level (kpsi): 100
- Jacket Material: Polyurethane
- Buffer Material: Hard Elastomeric
- Cable Diameter: 0.22in (5.5mm)
- Impact Resistance: 1500 impacts
- Crush Resistance: 1800 N/cm
- Flex Resistance: 2000 cycles
- Max Tensile Load:
- Installation: 1,800 N (400 lbs)
- Operating: 600 N (130 lbs)
- Min Bend Radius:
- Installation: 2.2in (5.5cm)
- Operating: 1.1in (2.8cm)
- Temperature:
- Operating: -40°F to 185°F (-40°C to +85°C)
- Storage: -94°F to 185°F (-70°C to +85°C)
QPC QFoca Connectors:
- Insertion Loss: 0.10-0.75dB Max. (0.40dB Typical)
- Return Loss: -55dB UPC
- Lifetime: 2000 Cycles
- IP Rating: IP68 - Dust Tight; No ingress of dust; complete protection against contact; Water Immersion Beyond 1 Meter
- Vibration Resistance: 10 to 2000Hz / 15g EIA/TIA-455-11; Cond. III
- Impact Resistance: 8 Impacts @ 8FT (2.4MT); EIA/TIA-455-2
- Shock Resistance: 50g for 11ms; EIA/TIA-455-14; Condition A
