Breakout Adapters - SMPTE

Sorry, no canvas available
Camplex HYDAP SMPTE to opticalCON DUO Breakout Fiber Adapter Camplex HYDAP SMPTE to opticalCON DUO Breakout Fiber Adapter Camplex HYDAP SMPTE to opticalCON DUO Breakout Fiber Adapter Camplex HYDAP SMPTE to opticalCON DUO Breakout Fiber Adapter
HYDAP Breakout Fiber Adapters Convert a SMPTE 311m hybrid fiber cable to conventional single mode ST, LC or opticalCON DUO cable with the HYDAP series of robust in-line adapters. Converting SMPTE hybrid cables to conventional fiber cables avoids the cost of additional cables and increases the distance for reliable camera connections. Designed for harsh environments, such as sports broadcasting and stadiums, HYDAP breakout adapters feature a durable aluminum housing and recessed fiber connectors to prevent damage.



Note: HYDAPS are passive SMPTE fiber breakout boxes that allow for simple integration using riser rated duplex cables. Some camera/CCU setups may require continuity between the copper conductors found within a SMPTE fiber connector to remain intact. For such scenarios, models are also available with optional power tap to interface with camera CCU: 5-Pin, 6-Pin or 8-Pin AMP CPC connector or male or female XLR wired to the copper conductors of the SMPTE hybrid connector. Contact your reseller for assistance.

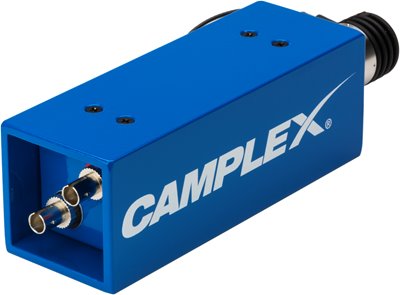

HYDAP-F1

HYDAP-F1 SMPTE 311M Lemo EDW Female to Duplex ST Fiber Optic Adapter

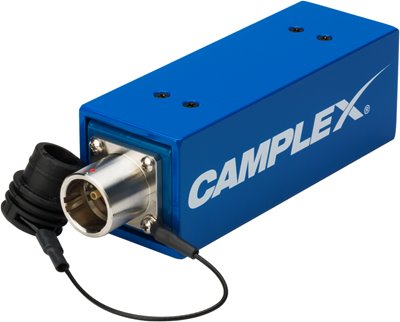

HYDAP-F-F

HYDAP-F-F SMPTE 311M Hybrid Female to Female Cable Coupler

HYDAP-FNT1

HYDAP-FNT1 SMPTE 311M Female to Neutrik opticalCon DUO Fiber Optic Adapter

HYDAP-FLC

HYDAP-FLC SMPTE 311M Female to Duplex LC Fiber Optic Adapter

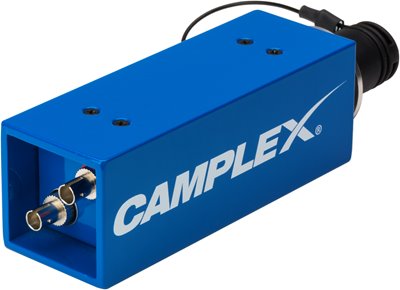

HYDAP-M1

HYDAP-M1 SMPTE 311M Lemo FXW Male to Duplex ST Fiber Optic Adapter

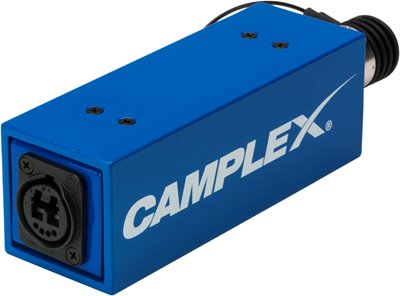

HYDAP-FNT1-PWR

HYDAP-FNT1-PWR with Power SMPTE 311M Female to Neutrik opticalCon DUO Fiber Optic Adapter

HYDAP-M-F

HYDAP-M-F SMPTE 311M Hybrid Male to Female Cable Coupler

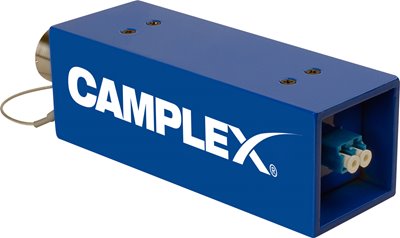

HYDAP-MLC

HYDAP-MLC SMPTE 311M Male to Duplex LC Fiber Optic Adapter

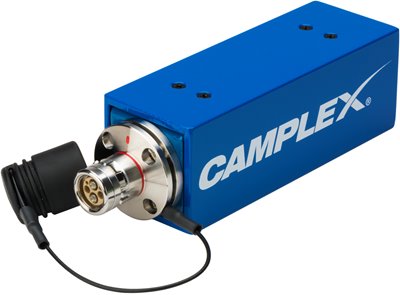

HYDAP-M-M

HYDAP-M-M SMPTE 311M Hybrid Male to Male Cable Coupler

HYDAP-MNT1

HYDAP-MNT1 SMPTE 311M Male to Neutrik opticalCON DUO Fiber Optic Adapter

HYDAP-MNT1-PWR

HYDAP-MNT1-PWR with Power SMPTE 311M Male to Neutrik opticalCON DUO Fiber Optic Adapter

  •  Fiber adapter converts SMPTE 311m hybrid fiber to standard fiber cable
  •  Lower costs and increased distances
  •  Square design prevents rolling
  •  Extruded aluminum housing
  •  Recessed connectors with dust covers
  •  Models available with optional power tap
