Inspection Tool Visual Fault Locator finds breaks, severe bends, and discontinuities in fiber optic cables Inspection Tool Visual Fault Locator finds breaks, severe bends, and discontinuities in fiber optic cables

Visual Fault Locators

Visual Fault Locator inspection tools find breaks, severe bends, and discontinuties in fiber optic cables. Both models are housed in a durable aluminum enclosure and feature an LED power indicator and two operating modes, CW, or continuous wave, for a steady fault illumination or GLINT which produces a modulated output.

CMX-TL-1501 includes a belt holster and 2 AA batteries

CMX-TL-1502 includes a zippered carrying case, metal dust cap, and 2 AA batteries

CMX-TL-1501

Visual Fault Locator - 10mW Output Power 10KM Max Distance

CMX-TL-1502

Visual Fault Locator - 20mW Output Power 20KM Max Distance

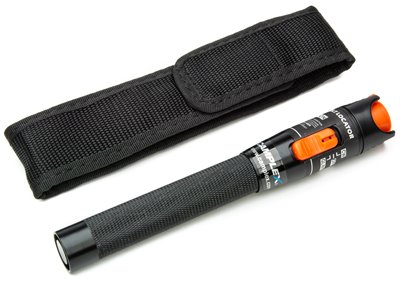

CMX-TL-1501

  • Output Power: 10mW
  • Maximum Distance: 10kM
  • Interface: 2.5 mm
  • Wavelength 650nm ± 10nm
  • Pulse Frequency: 2Hz to 3Hz
  • Battery life: >60 hrs
  • Dimensions (Length):  6.75in

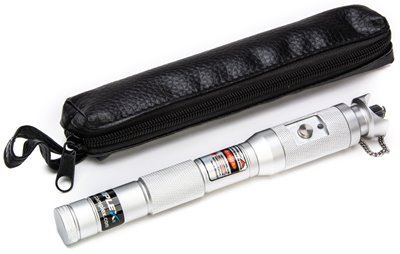

CMX-TL-1502

  • Output Power: 20mW
  • Maximum Distance: 20kM
  • Interface: 2.5 mm
  • Wavelength 650nm ± 10nm
  • Pulse Frequency: 3Hz and 9Hz
  • Battery life: >60 hrs
  • Dimensions (Length):  7.75in
