Modular Rack System

Sorry, no canvas available
Camplex HY45 SMPTE Hybrid Connector Fiber Optic Panel
HY45 SMPTE Hybrid Modular Rack System Build custom SMPTE hybrid connector panels with the HY45 modular rack series. Add up to 8 pre-punched modules in a 2RU 45-degree or 90-degree steel rack frame. Mounting hardware included.

Connectors not included.

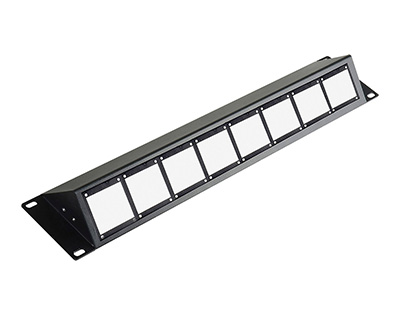

HY45-45D2RU

HY45-45D2RU 45 Degree 2RU 8-Position Empty Rack Frame

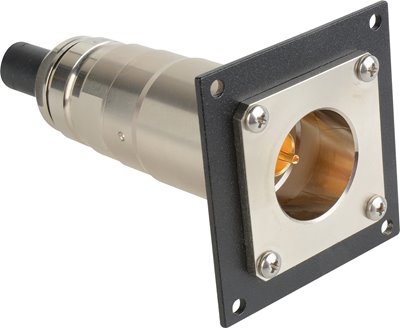

HY45-105-L-CJ

HY45-105-L-CJ Triax Female Canare Jack (with Clamp). Loaded into HY45 Pre-Punched Frame Modules

HY45-90D2RU

HY45-90D2RU 90 Degree (Flat Front) 8-Position 2RU Empty Rack Frame

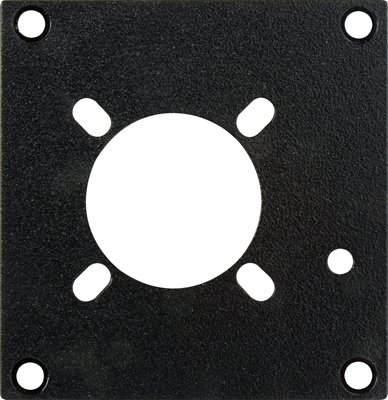

HY45-101

HY45-101 LEMO SMPTE Plug or Jack, Holds Either, HY45 Pre-Punched Frame

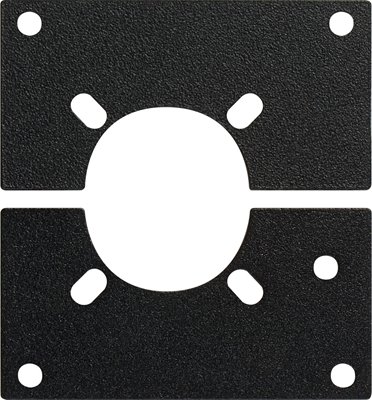

HY45-101-SPLIT

HY45-101-SPLIT Canare & LEMO SMPTE Plug & Jack Panel Mount Split Frame

HY45-102

HY45-102 Dual ST Fiber Feedthrough Pre-Punched Frame Module for HY45 System

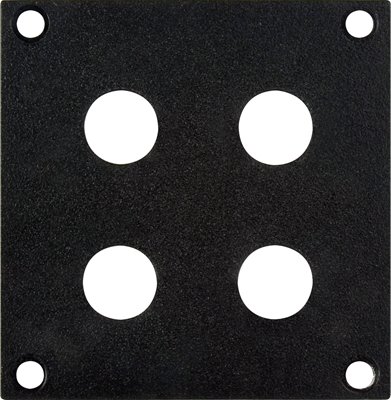

HY45-103

HY45-103 Quad ST Fiber Feedthrough Pre-Punched Frame Module for HY45 System

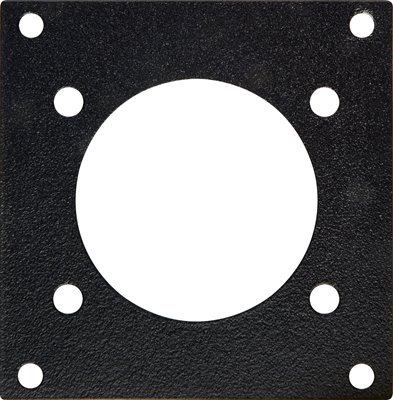

HY45-104

HY45-104 Triax Male Plug Pre-Punched Frame Module for HY45 System

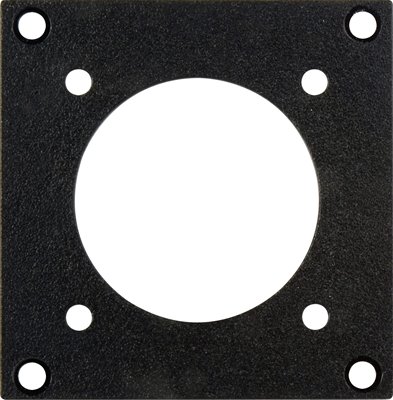

HY45-105

HY45-105 Triax Female Jack Pre-Punched Frame Module for HY45 System

HY45-105-L-CJ

HY45-105-L-CJ Triax Female Canare Jack, with Clamp, Loaded into HY45 Pre-Punched Frame Modules

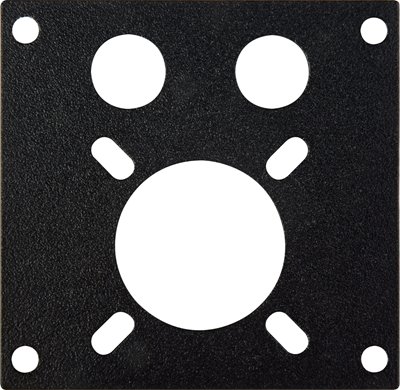

HY45-106

HY45-106 Dual ST & AMP 5-Pin or 8-Pin Power Punched Module for HY45 System

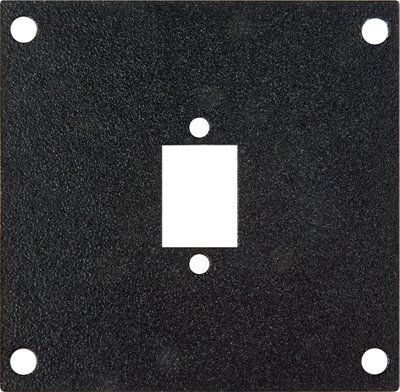

HY45-108

HY45-108 Duplex LC Fiber Feedthrough Pre-Punched Frame Module for HY45 System

HY45-109

HY45-109 Quad LC Fiber Feedthrough Pre-Punched Frame Module for HY45 System

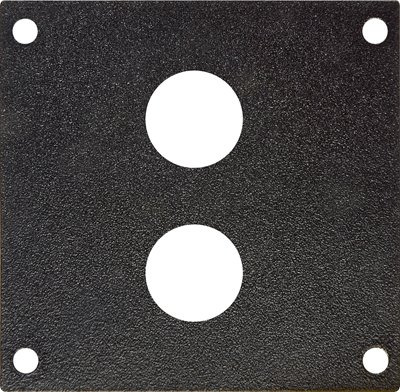

HY45-110

HY45-110 Bank of 2 BNC Feedthrough HY45 Pre-Punched Frame

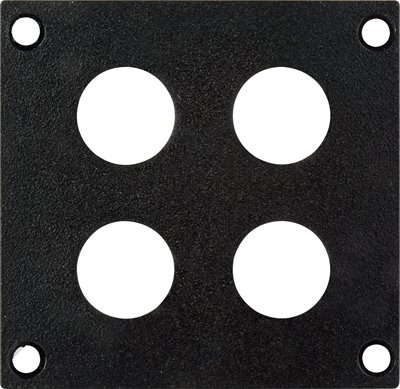

HY45-111

HY45-111 Quad BNC Feedthrough Pre-Punched Frame Module for HY45 System

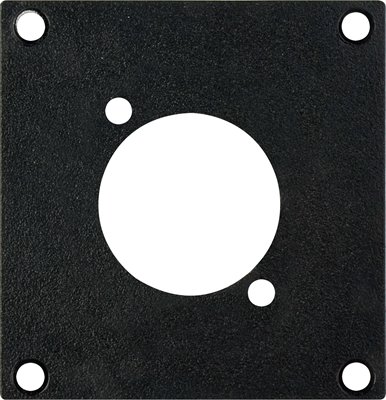

HY45-112

HY45-112 Universal D-Punch opticalCON Frame Module for HY45 System

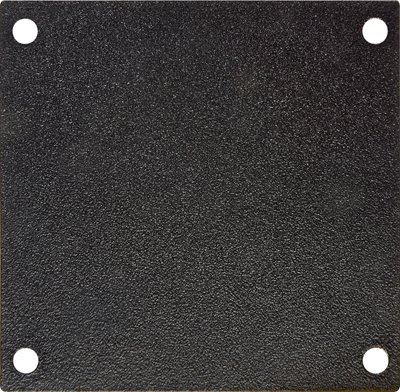

HY45-114

HY45-114 Blank Cover Plate for HY45 System

HY45-BX1

HY45-BX1 2RU Aluminum Fiber Patch Panel Enclosed Cabinet for HY45-45D2RU & HY45-90D2RU

HY45-PL1

HY45-PL1 Optional Rear Plate Punched for Dual ST & AMP Power for HY45 System

HY45-PL2

HY45-PL2 Optional Rear plate for HY45-BX1 Enclosed Cabinet for HY45 System

  •  Fits up to 8 modules and connectors
  •  Hardware sits flush
  •  Add opticalCON, ST, Triax and more in the same rack panel
  •  Mounting hardware included
  •  Black powder-coated steel
