Fiber Loopbacks

Sorry, no canvas available

Camplex's CMX-LB Series of Fiber Loopback testers are precision testing tools designed for validating optical network equipment and troubleshooting fiber optic systems. By creating a closed-loop connection between transmit and receive ports, these modules enable technicians to verify signal integrity, diagnose link failures, confirm proper equipment operation without requiring a remote connection, and extend signals through patching.

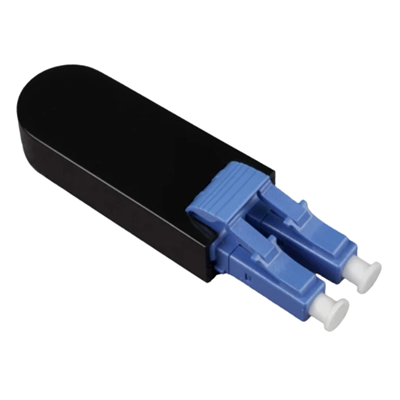

CMX-LB-SM-LC

UPC LC Single Mode Fiber Loopback Testing / Extending Module

CMX-LB-SM-MPO

12 Fiber APC MPO / MTP Single Mode Fiber Loopback Testing / Extending Module - Method A

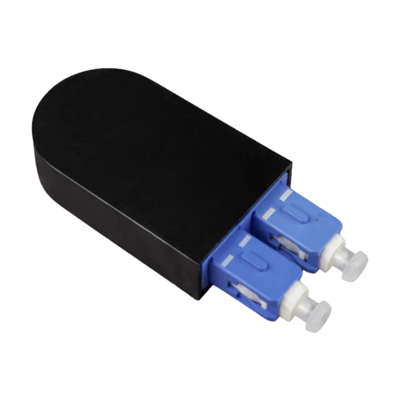

CMX-LB-SM-SC

UPC SC Single Mode Fiber Loopback Testing / Extending Module

  •  Designed for Troubleshooting Network Failure Nodes or Extending Signal
  •  Low Insertion Loss for Accuracy
  •  Designed for Single Mode Fiber
  •  Compact and Durable Housing
CMX-LB-SM-LC
  •  Connector Type: UPC LC
  •  Fiber Type: 9/125 OS2 Single Mode
  •  Insertion Loss: ≤0.3dB
  •  Return Loss: ≥50dB
  •  Operation Temperature: -4°F to 158°F (-20°C to +70°C)
CMX-LB-SM-SC
  •  Connector Type: UPC SC
  •  Fiber Type: 9/125 OS2 Single Mode
  •  Insertion Loss: ≤0.3dB
  •  Return Loss: ≥50dB
  •  Operation Temperature: -4°F to 158°F (-20°C to +70°C)
CMX-LB-SM-MPO
  •  Connector Type: APC MPO Female 12 Fiber
  •  Fiber Type: 9/125 OS2 Single Mode
  •  Pin Method: Method A
  •  Insertion Loss: ≤1.5dB
  •  Return Loss: ≥50dB
  •  Operation Temperature: -4°F to 158°F (-20°C to +70°C)
