Camplex CMX-MPR Modular Fiber Patch Panel Series

The Camplex rackmount fiber patch panel series offers simplicity and flexibility in a modular design for equipment interconnections.  The black powder-coated steel enclosures feature tool-less sliding trays where fibers can be easily accessed. Fiber adapter plates are available in several connector configurations and are easily mounted and locked into the enclosures. Single mode fiber plates are multimode fiber compatible.

Enclosures:
CMX-MPR-1RU –1RU, up to 3 modules, 36 to 72 fibers, internal mounting holes, routing guides, hinged top
CMX-MPR-2RU – 2RU, up to 6 modules, 72 to 144 fibers, internal mounting holes, routing guides, clear hinged front panel

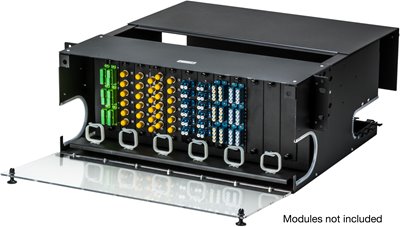

CMX-MPR-4RU – 4RU, up to 12 modules, up to 288 fibers, internal mounting holes, routing guides, clear hinged front panel
CMX-MPR-1RUE – 1RU economy, up to 3 modules, 36 to 72 fibers, hinged top
CMX-MPWB-24M – Wall mounted, 1 module, 24 or 12 fibers, hinged door

Note: For reliable performance, fiber connections should be cleaned each time a connection is made.

CMX-MPR-1RU

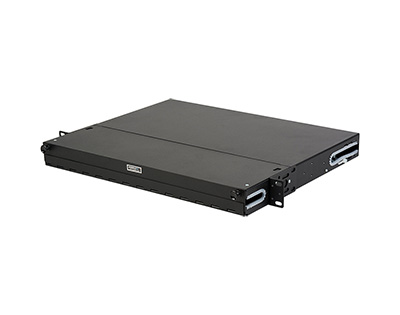

CMX-MPR-1RU Adjustable Fiber Optic Patch Panel Enclosure for 19 or 23-Inch Racks - Holds 3 Modules for up to 72 Fibers

CMX-MPR-1RUE

CMX-MPR-1RUE 1RU Economy Fiber Optic Patch Panel for 19 Inch rack holds up to 3 modules

CMX-MPR-1RUP

CMX-MPR-1RUP 1RU LGX 19 inch Rack Mount Fiber Optic Patch Panel / up to 3 LGX Panels

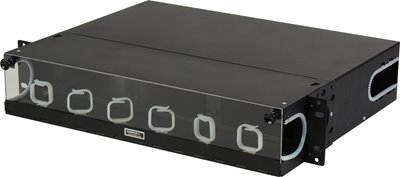

CMX-MPR-2RU

CMX-MPR-2RU Adjustable Fiber Optic Patch Panel Enclosure for 19 or 23-Inch Racks - Holds 6 Modules for up to 144 Fibers

CMX-MPWB-06M

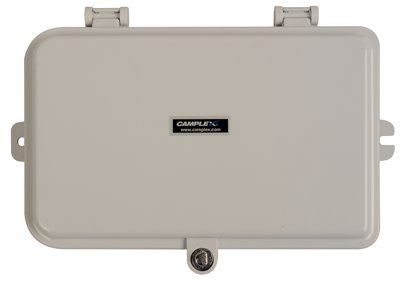

CMX-MPWB-06M Plastic Wall-Mounted Fiber Optic Terminal Box with Swing Out Splice Tray Accommodates up to 6 Simplex Adapters

CMX-MPWB-24M

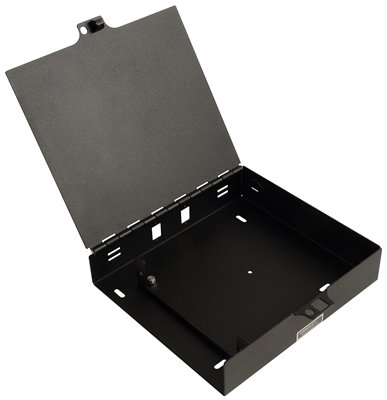

CMX-MPWB-24M Wall Mounted Steel Fiber Optic Patch Panel Enclosure with Hinged Door for 1 Adapter Panel up to 24 fibers

CMX-MP-BLANK

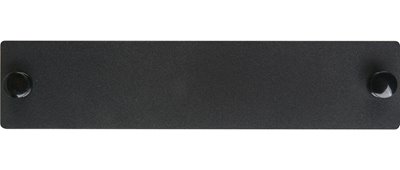

CMX-MP-BLANK Blank Module with Turn Latches

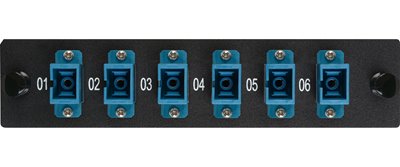

CMX-MP06SCSP

CMX-MP06SCSP Single Mode Module 6 Fiber 6 Port with Ceramic SC Simplex Connectors - Blue

CMX-MP06STS

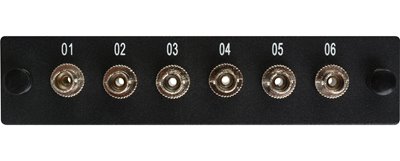

CMX-MP06STS Single Mode Module 6 Fiber 6 Port Ceramic ST Connectors-Yellow

CMX-MP12LCDP

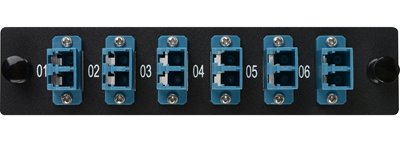

CMX-MP12LCDP Single Mode Module 12 Fiber 6 Port with Ceramic LC Duplex Connectors- Blue

CMX-MP12SCD

CMX-MP12SCD 6-Port SC UPC Duplex Single Mode Fiber Adapter Plate Module with Ceramic Connectors

CMX-MP12SCDA

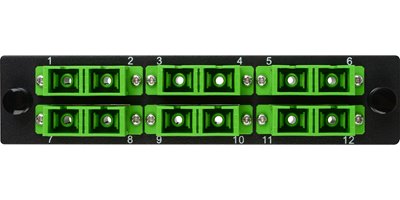

CMX-MP12SCDA Single Mode Module 12 Fiber 6 Port with Ceramic SC APC Duplex Connectors-Green

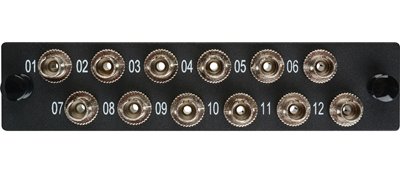

CMX-MP12STS

CMX-MP12STS Single Mode Module 12 Fiber 12 Port with Ceramic ST Connectors-Yellow

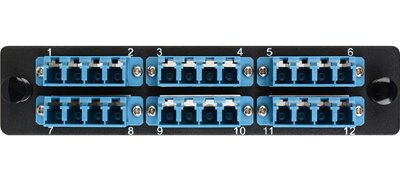

CMX-MP24LCSP

CMX-MP24LCSP Single Mode Module 24 Fiber 6 Port with Ceramic LC Quad Connectors-Blue

CMX-MPWB-06M

CMX-MPWB-06M Plastic Wall-Mounted Fiber Optic Terminal Box with Swing Out Splice Tray Accommodates up to 6 Simplex Adapters

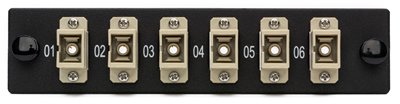

CMX-MP06SCM

Camplex CMX-MP06SCM 6 Port SC Simplex 50/62/5 Multimode Fiber Adapter Plate Module with Phosphor Bronze Connectors

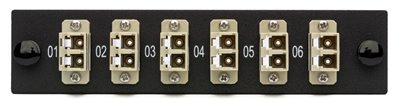

CMX-MP12LCM

Camplex CMX-MP12LCM 6 Port LC Duplex 50/62.5 Multimode Fiber Adapter Plate Module with Phosphor Bronze Connectors

CMX-MP12SCM

Camplex CMX-MP12SCM 6 Port SC Duplex Multimode Fiber Adapter Plate Module with Connectors

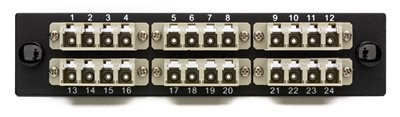

CMX-MP24LCM

Camplex CMX-MP24LCM 6 Port LC Quad 62.5 Multimode Fiber Adapter Plate Module with Phosphor Bronze Connectors - Beige

 Enclosures include cable management pack:

  •  Plastic tie wraps
  •  Cable managers with adhesive bottom
  •  Port identification label
  •  Radiation caution label
  •  Screws for securing to rack and top panels
Dimensions:
CMX-MPR-1RU -  19 x 14.75 x 1.75 in
CMX-MPR-2RU - 19 x 14.75 x 3.5 in
CMX-MPR-4RU - 19 x 14.75 x 3.5 in
CMX-MPR-1RUE - 7.06 x 7.00 x 1.375 in
CMX-MPWB-24M - 7.06 x 7.00 x 1.375 in
