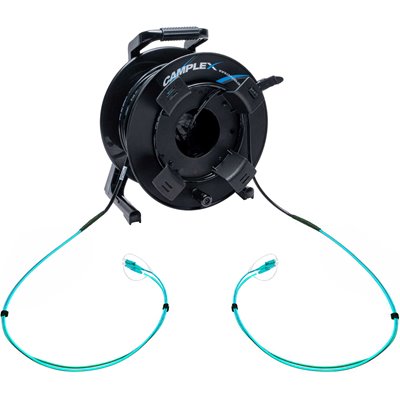

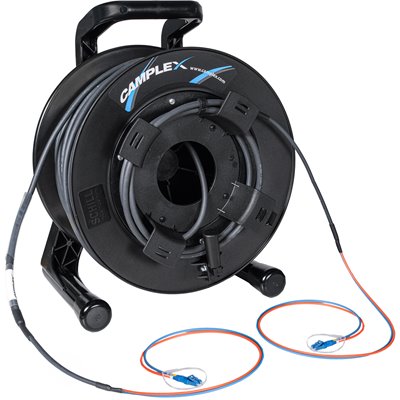

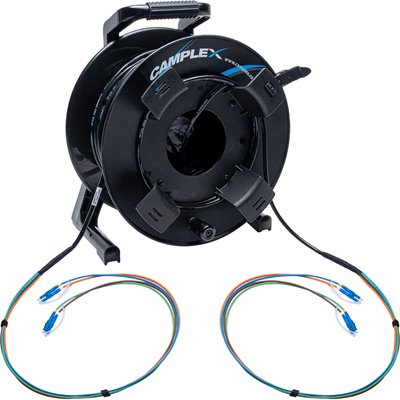

- High Quality Camplex Single Mode and Multimode Outdoor X-Treme Rated Cables
- Premium Senko Connectors Provide Low Insertion Loss
- Glass Yarn Provides Improved Rodent Protection
- Spooled on High-Quality Schill or JackReel, dependent on length
Camplex XTREME Single Mode Cable:
- Fiber Type: OS2 Single Mode
- Fiber Buffer Material: Nylon
- Fiber Buffer Construction: Tight
- Fiber Buffer Diameter: 0.03in (0.9mm)
- Fiber Count: 4
- Cable Core Water Blocking Material: Water Blocking Aramid Yarns+Glass Yarns
- Inner Jacket Material: Polyurethane (PUR)
- Outer Jacket Material: Polyurethane (PUR)
- Outer Jacket Nom. Diameter: 0.36in (9.2mm)
- Max. Attenuation:
- 0.40 dB/km @1310nm
- 0.30 dB/km @1550nm
- 0.30 dB/km @1625nm
- Min. Bend Radius:
- Installation: 2.89in (73.6mm)
- Operation: 1.44in (36.8mm)
- Max. Tensile Strength:
- Installation: 2400 N (540 lbf)
- Operation: 800 N (180 lbf)
- Max. Crush Resistance:
- Installation: 5 kN/m
- Operation: 3 kN/m
- Temperature:
- Installation: 23°F to 122°F (-5°C to +50°C)
- Operating: -94°F to 185°F (-70°C to +85°C)
- Storage: -94°F to 185°F (-70°C to +85°C)
- ISO/IEC Compliance: IEC 60794ISO/IEC 11801-1

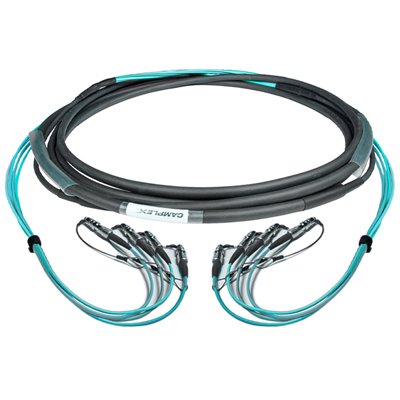

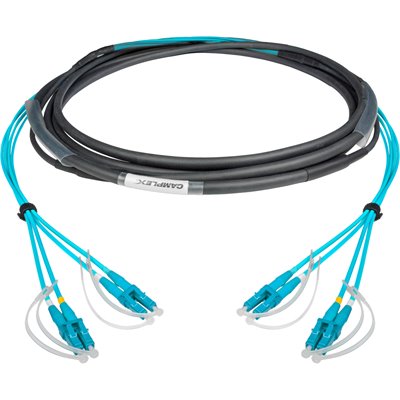

Camplex XTREME OM3 Multimode Cable:
- Fiber Type: OM3 Multimode
- Fiber Buffer Material: Nylon
- Fiber Buffer Construction: Tight
- Fiber Count: 4
- Cable Core Water Blocking Material: Water Blocking Aramid Yarns+Glass Yarns
- Inner Jacket Material: Polyurethane (PUR)
- Outer Jacket Material: Polyurethane (PUR)
- Outer Jacket Diameter: 0.36in (9.2mm)
- Max. Attenuation:
- 2.9 dB/km @850nm
- 0.9 dB/km @1300nm
- Min. Bend Radius:
- Installation: 2.89in (73.6mm)
- Operation: 1.44in (36.8mm)
- Max. Tensile Strength:
- Installation: 2400 N (540 lbf)
- Operation: 800 N (180 lbf)
- Max. Crush Resistance:
- Installation: 5 kN/m
- Operation: 3 kN/m
- Temperature:
- Installation: 23°F to 122°F (-5°C to +50°C)
- Operating: -94°F to 185°F (-70°C to +85°C)
- Storage: -94°F to 185°F (-70°C to +85°C)
- ISO/IEC Compliance: IEC 60794ISO/IEC 11801-1

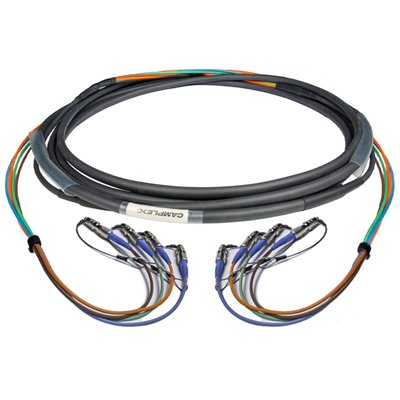

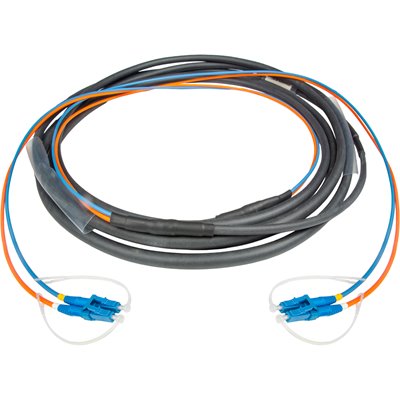

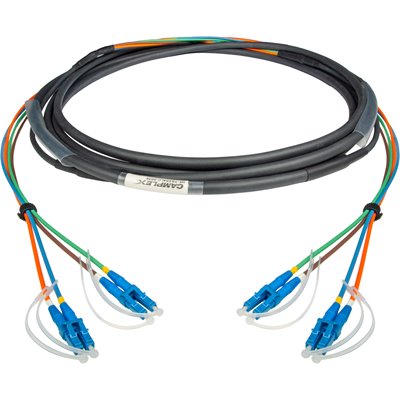

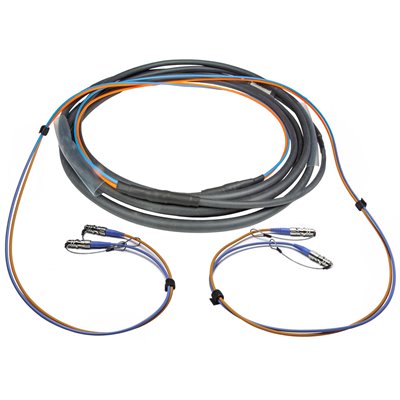

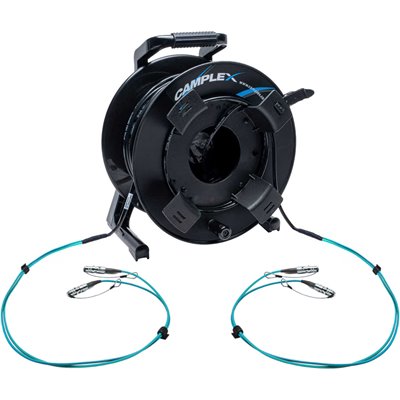

Senko LC and ST Connectors:
- Typical Insertion Loss (dB): 0.1
- Max. Insertion Loss (dB): 0.2
- Typical Return Loss (dB): ≥25
- Ferrule Material: Zirconia
- Ferrule Diameter (µm): 127
- Lifetime: 500 Matings

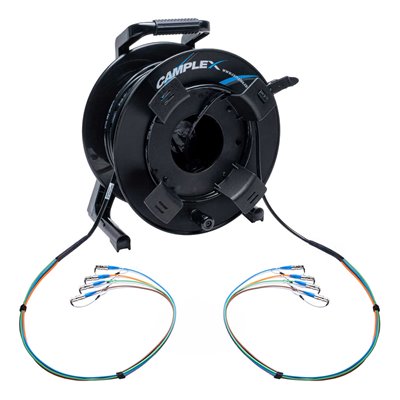

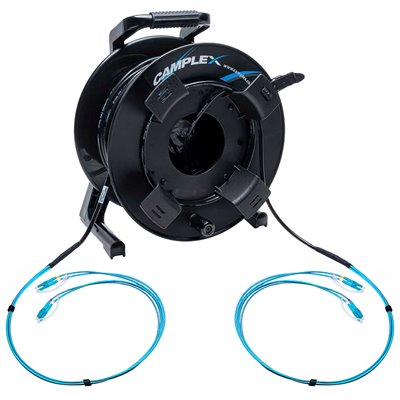

Reels Specs:
- Dims:
- Schill GT380 (L x W x H): 19.5” x 15.5” x 13.25”
- Schill GT385 (L x W x H): 19.5” x 15.5” x 13.25”
- Schill HT485 (L x W x H): 22” x 18.5” x 13.50”
- JackReel-XL1:
- H x W x D (with Casters): 21.18” x 21.75” x 17.87”
- Height Without Casters: 17.87”
- Material:
- Schill GT380: Synthetic Rubber
- Schill GT385: Steel
- Schill HT485: Steel
- JackReel-XL1: Tubular Steel
