Tactical Breakout Adapters - opticalCON

Sorry, no canvas available

Connect your Neutrik opticalCON DUO/QUAD OM3 Multimode or Single Mode cables to standard LC, ST, SC, LC/APC, SC/APC fiber optic connectors with tactical in-line adapters.

Rugged ground-tactical cable, ideal for use in harsh environments where repeated deployment and reuse is required. In addition to its durability, the lightweight design is perfect to strap to cameras and other gear.

The total cable is 10 feet while each individual channel fanout is clearly numbered and 2 feet in length for professional use. Supplied with opticalCON rubber dust cap for maximum protection. opticalCON DUO adapters feed out to (2) individual fiber channels while QUAD feeds to (4).

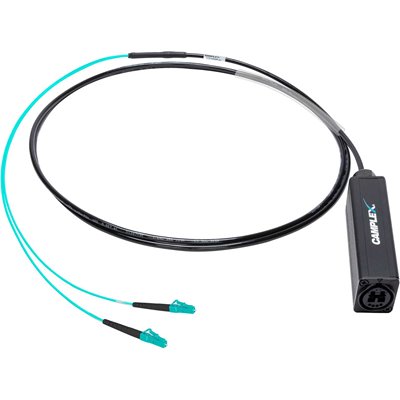

TOPADAP-1

opticalCON DUO to Two (2) LC Tactical Breakout Adapter - OM3 Multimode

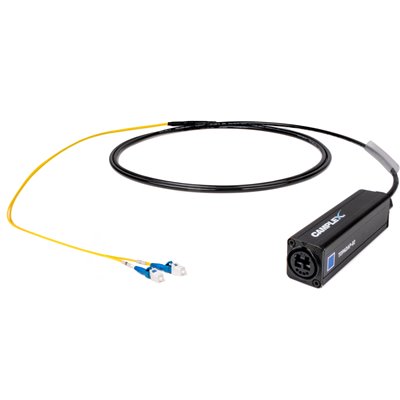

TOPADAP-02

opticalCON DUO to Two (2) LC Tactical Breakout Adapter - Single Mode

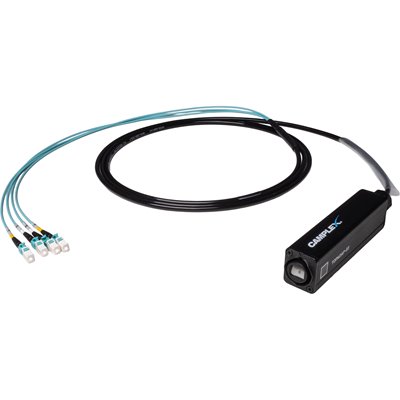

TOPADAP-03

opticalCON QUAD to Four (4) LC Tactical Breakout Adapter - OM3 Multimode

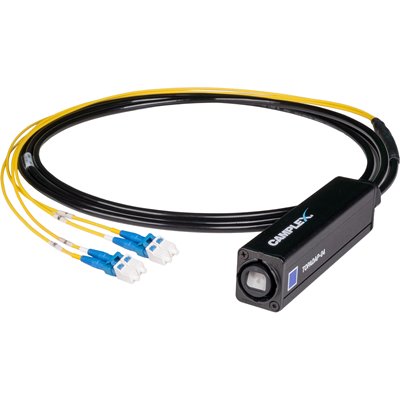

TOPADAP-04

opticalCON QUAD to Four (4) LC Tactical Breakout Adapter - Single Mode

TOPADAP-05

opticalCON DUO to Two (2) ST Tactical Breakout Adapter - OM3 Multimode

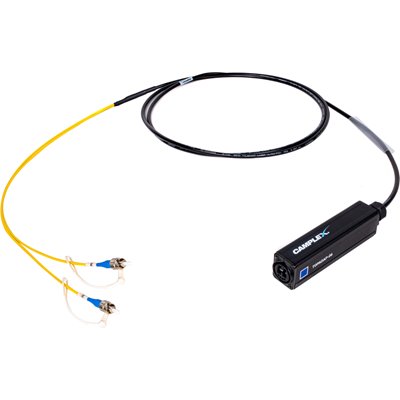

TOPADAP-06

opticalCON DUO to Two (2) ST Tactical Breakout Adapter - Single Mode

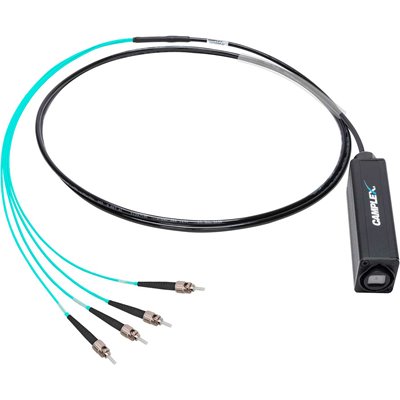

TOPADAP-07

opticalCON QUAD to Four (4) ST Tactical Breakout Adapter - OM3 Multimode

TOPADAP-08

opticalCON QUAD to Four (4) ST Tactical Breakout Adapter - Single Mode

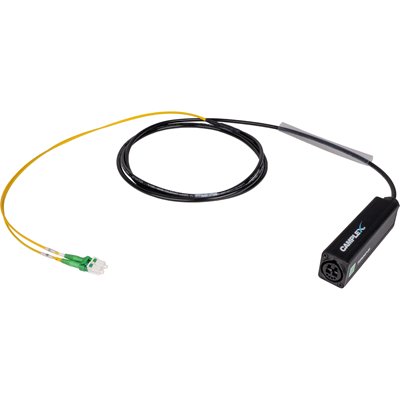

TOPADAP-09

opticalCON DUO APC to Two (2) LC APC Tactical Breakout Adapter - Single Mode

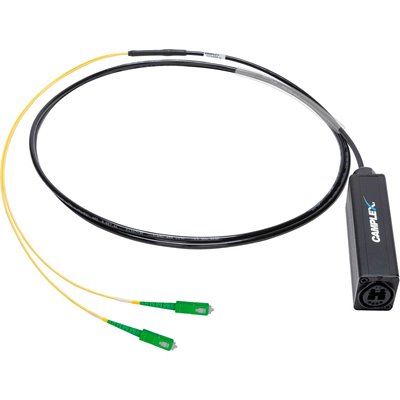

TOPADAP-10

opticalCON DUO APC to Two (2) SC APC Tactical Breakout Adapter - Single Mode

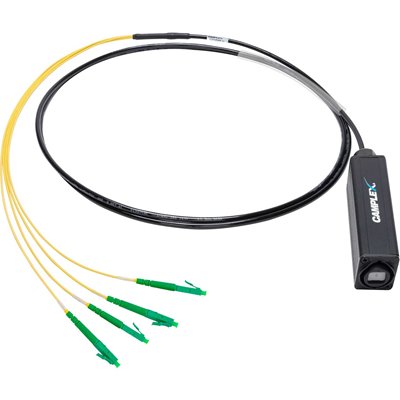

TOPADAP-11

opticalCON QUAD APC to Four (4) LC APC Tactical Breakout Adapter - Single Mode

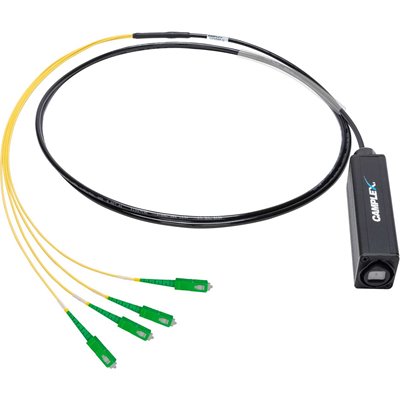

TOPADAP-12

opticalCON QUAD APC to Four (4) SC APC Tactical Breakout Adapter - Single Mode

TOPADAP-13

opticalCON DUO to Two (2) SC Tactical Breakout Adapter - Single Mode

TOPADAP-14

opticalCON DUO to Two (2) SC Tactical Breakout Adapter - OM3 Multimode

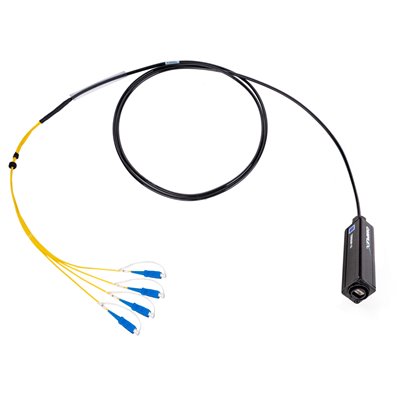

TOPADAP-15

opticalCON QUAD to Four (4) SC Tactical Breakout Adapter - Single Mode

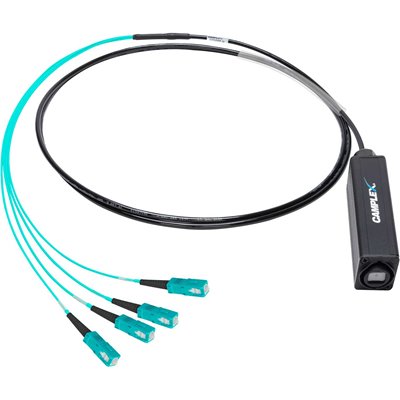

TOPADAP-16

opticalCON QUAD to Four (4) SC Tactical Breakout Adapter - OM3 Multimode

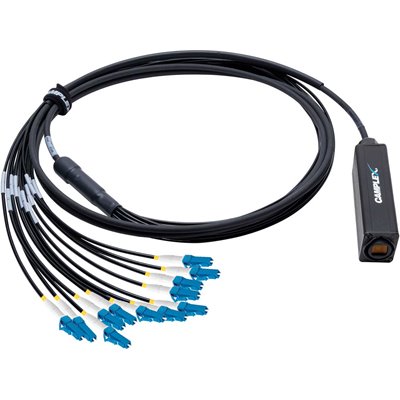

TOPADAP-17

opticalCON MTP 12 to Twelve (12) LC Tactical Breakout Adapter - Single Mode

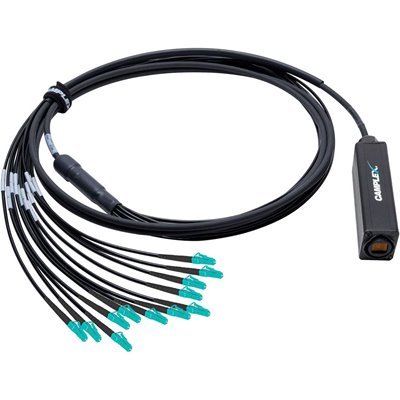

TOPADAP-18

opticalCON MTP 12 to Twelve (12) LC Tactical Breakout Adapter - OM4 Multimode

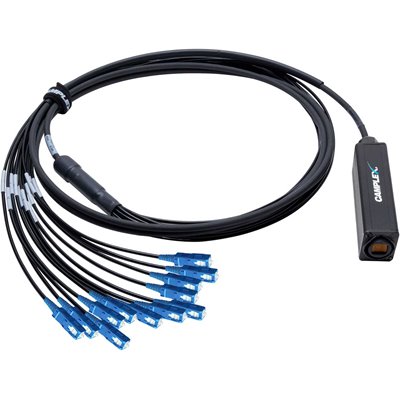

TOPADAP-19

opticalCON MTP 12 to Twelve (12) SC Tactical Breakout Adapter - Single Mode

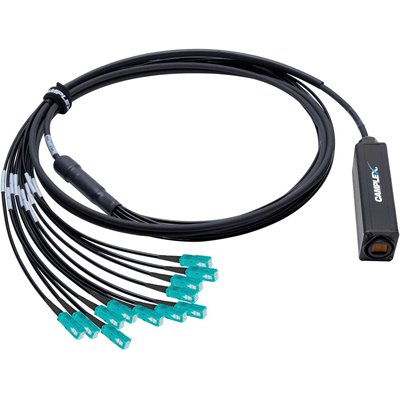

TOPADAP-20

opticalCON MTP 12 to Twelve (12) SC Tactical Breakout Adapter - OM4 Multimode

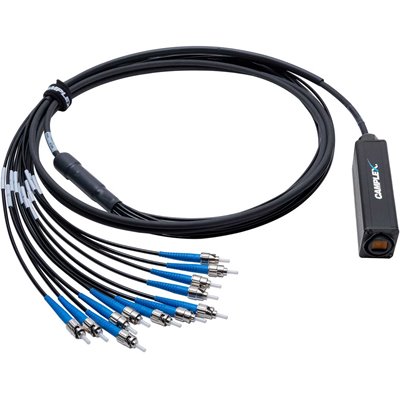

TOPADAP-21

opticalCON MTP 12 to Twelve (12) ST Tactical Breakout Adapter - Single Mode

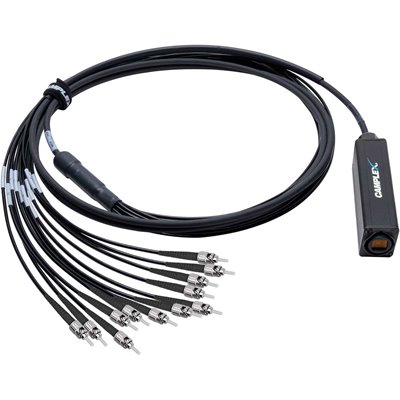

TOPADAP-22

opticalCON MTP 12 to Twelve (12) ST Tactical Breakout Adapter - OM4 Multimode

TOPADAP-23

opticalCON MTP 24 to Twenty-Four (24) LC Tactical Breakout Adapter - Single Mode

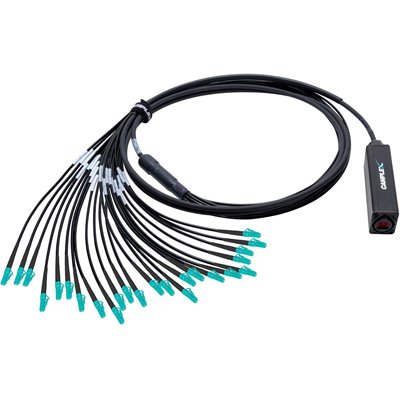

TOPADAP-24

opticalCON MTP 24 to Twenty-Four (24) LC Tactical Breakout Adapter - OM4 Multimode

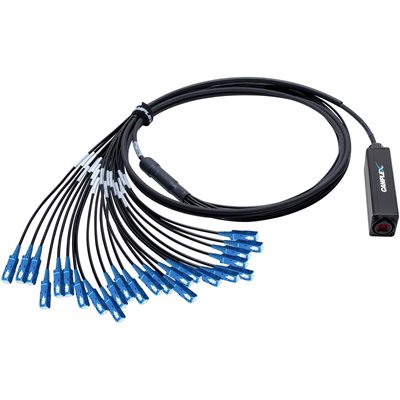

TOPADAP-25

opticalCON MTP 24 to Twenty-Four (24) SC Tactical Breakout Adapter - Single Mode

TOPADAP-26

opticalCON MTP 24 to Twenty-Four (24) SC Tactical Breakout Adapter - OM4 Multimode

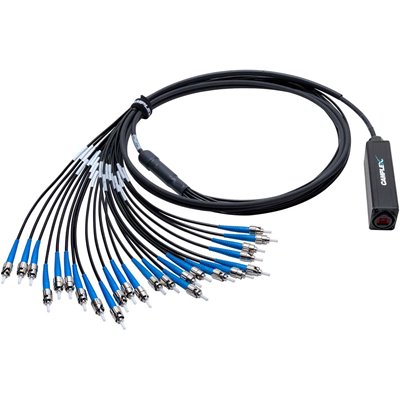

TOPADAP-27

opticalCON MTP 24 to Twenty-Four (24) ST Tactical Breakout Adapter - Single Mode

TOPADAP-28

opticalCON MTP 24 to Twenty-Four (24) ST Tactical Breakout Adapter - OM4 Multimode

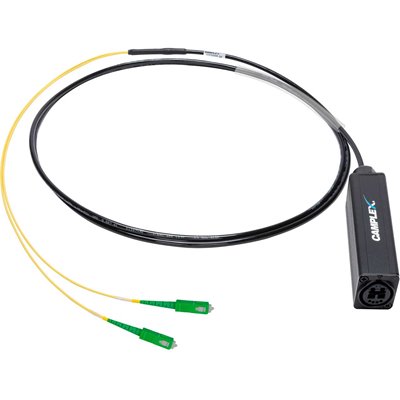

TOPADAP-29

opticalCON DUO UPC to Two (2) SC APC Tactical Breakout Adapter - Single Mode

  • Tactical Single Mode Cable Ideal for Use in Harsh Environments
  • Lightweight Design
  • Labeled Channels

TOPADAP-1 - TOPADAP-16

Neutrik NO2-4FDW-A:
Insertion Force    < 45 N
Withdrawal Force: < 45 N
Lifetime: > 5000 Mating Cycles

Neutrik NO4FDW-A:
Insertion Force: < 45 N
Withdrawal Force: < 45 N
Lifetime: > 5000 Mating Cycles
Locking Device: Push-Pull
Insertion Loss: < 0.5 dB / Connection

D-Series 2-Fiber OM3 Multimode Military Tactical 50 Micron Cable:
Tactical Polyurethane Outer Jacket
Ultra-Fox Plus Fiber
Helically Stranded Cable Core
Thick Layer of Aramid Strength Members

TOPADAP-17 - TOPADAP-28

Neutrik opticalCON MTP12:
Cable Retention: 500 N
Insertion Force: < 45 N
Withdrawal Force: < 45 N
Lifetime: 2500 Mating Cycles
Temperature Range: -40°C to 75°C (-40°F to 167°F)
Insertion Loss: < 0.9 dB

Neutrik opticalCON MTP24:
Cable Retention: 500 N
Insertion Force: < 45 N
Withdrawal Force: < 45 N
Lifetime: 2500 Mating Cycles
Temperature Range: -40°C to 75°C (-40°F to 167°F)
Insertion Loss: < 0.9 dB


Laser Optimized 0M4 Bend Insensitive ISO/IEC 11801 Cable:
Tactical Polyurethane (C) Outer Jacket Materials is Standard; Flame-Retardant Tactical (V) and Low-Smoke Zero-Halogen (G)
Core / Cladding Diameter (µm): 50/125
Jacket Material: Polyurethane
Cable Weight: 41 kg/km (28 lbs/1000')
Cable Diameter: 6.5 mm (0.26 in)
Min Bend Operating Radius: 3.3 cm (1.3 in)
Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Storage Temperature: -70°C to 85°C (-94°F to 185°F)
