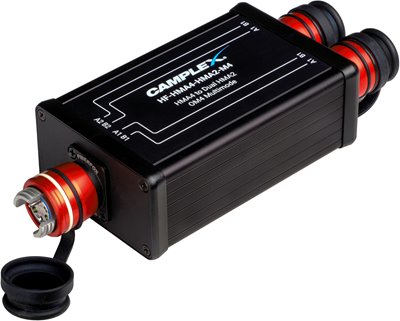

HF-HMA4-HMA2-M4
4-Channel OM4 Multimode Neutrik FIBERFOX EBC15 briDge to (2) 2-Channel FIBERFOX briDge Adapter

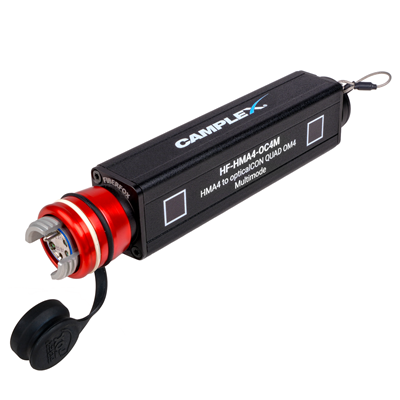

HF-HMA4-OC4M
4-Channel OM4 Multimode Neutrik FIBERFOX EBC15 briDge to opticalCON QUAD Adapter

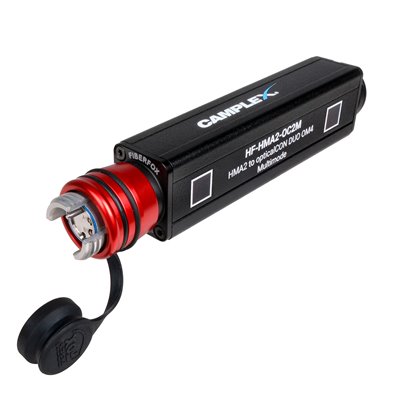

HF-HMA2-OC2M
2-Channel OM4 Multimode Neutrik FIBERFOX EBC15 briDge to opticalCON DUO Adapter

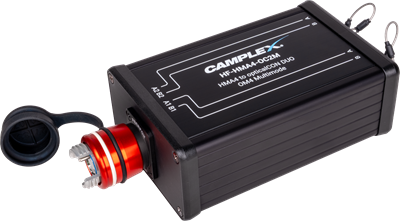

HF-HMA4-OC2M
4-Channel OM4 Multimode Neutrik FIBERFOX EBC15 briDge to (2) opticalCON DUO Adapter
- High-Quality Neutrik FIBERFOX and opticalCON Connectors
- Compatible with FIBERFOX Systems and all MIL-DTL-83526 Systems
- Rugged Aluminum Housing
- Available in 2-Channel or 4-Channel OM4 Multimode, DUO or QUAD
Overall Specifications:
- Fiber Type: OM4 Multimode
- Dimensions (W x H x L):
- HF-HMA2-OC2M: 1.25” x 1.027” x 6.56’
- HF-HMA4-OC2M: 1.69” x 3.07” x 6.78”
- HF-HMA4-OC4M: 1.25” x 1.027” x 6.56”
- HF-HMA4-HMA2-M4: 1.69” x 3.07” x 7.66”
FIBERFOX HMA 2-Channel/4-Channel Connectors:
- Gender: Hermaphroditic
- Insertion Loss: Typ. 1.5dB per connection / Max. 2.5dB per connection
- Optical Connector: EBC
- Optical Wiring: ISO/IEC 11801
- Lifetime: >10000 mating cycles
- Locking Device: Screwed
- Free Fall Resistance: 500 falls onto concrete from 1.2m height
- Bump Resistance: 4000 bumps @ 40g acceleration
- Vibrational Sinusoidal: 10-500Hz, 0.75 amplitude @ 10g acceleration
- Protection Class: IP68 mated and unmated (1m for 60 min)
- Compatibility: MIL-DTL-83526
Neutrik opticalCON Connectors:
- Insertion Loss:
- DUO: < 0.4 dB / connection
- QUAD: < 0.5 dB / connection
- Insertion Force: < 45 N
- Withdrawal Force: < 45 N
- Lifetime: 5000 Mating Cycles
- Locking Device: Push-Pull
- Protection Class: IP65 in mated condition in combination with SCDP-*
