HDMI Over Fiber Extender with Audio Extracting

Sorry, no canvas available

The Camplex CMX-HDMI-SFPL Extender sends HDMI signals up to 4K2K@50/60Hz over 10km of single mode fiber cable. Functions include bi-directional IR control, RS-232 signal transmission, EDID management and HDMI loop out. Two SFPs included.

Features:

  • Transmission Up to 10km over Single Mode Fiber
  • Video Resolutions up to 4K2K@50/60Hz (YUV 4:4:4)
  • Bi-directional Infrared Control
  • RS-232 Transmission
  • SFPs (small form-factor pluggable) Included
  • LED Indicators for Power, Optical, & HDMI
  • Rugged, Black Powder-Coated Metal Housing
  • Locking Power Adapters
  • CE, RoHS Certified
  • Single Fiber Simplex Operation
  • Video Resolutions up to 4K2K@50/60Hz (YUV 4:4:4)
  • EDID Management
  • HDMI Loop out
  • Audio Embedding on Tx, Audio Extraction on Rx
  • Bi-Directional Infrared Control
  • Bi-Directional RS-232 Transmission
  • LED Indicators for Power, Optical, & HDMI
  • Rugged, Black Powder-Coated Metal Housing
  • Locking Power Adapters
  • CE, RoHS Certified

Specifications:

  • Compliance: HDMI 2.0b (18Gbps), HDCP 2.2
  • Video Bandwidth: 18Gbps
  • Video Resolutions: Up to 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
  • Color Space: RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
  • HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital / Plus / EZ, Dolby TrueHD, DTS, DTS-EX, DTS-HD Master Audio, DSD
  • Transmission Distance: Up to 10km over single mode
  • IR Frequency: 20KHz-60KHz
  • RS-232 Baud Rate: 4800-115200bps

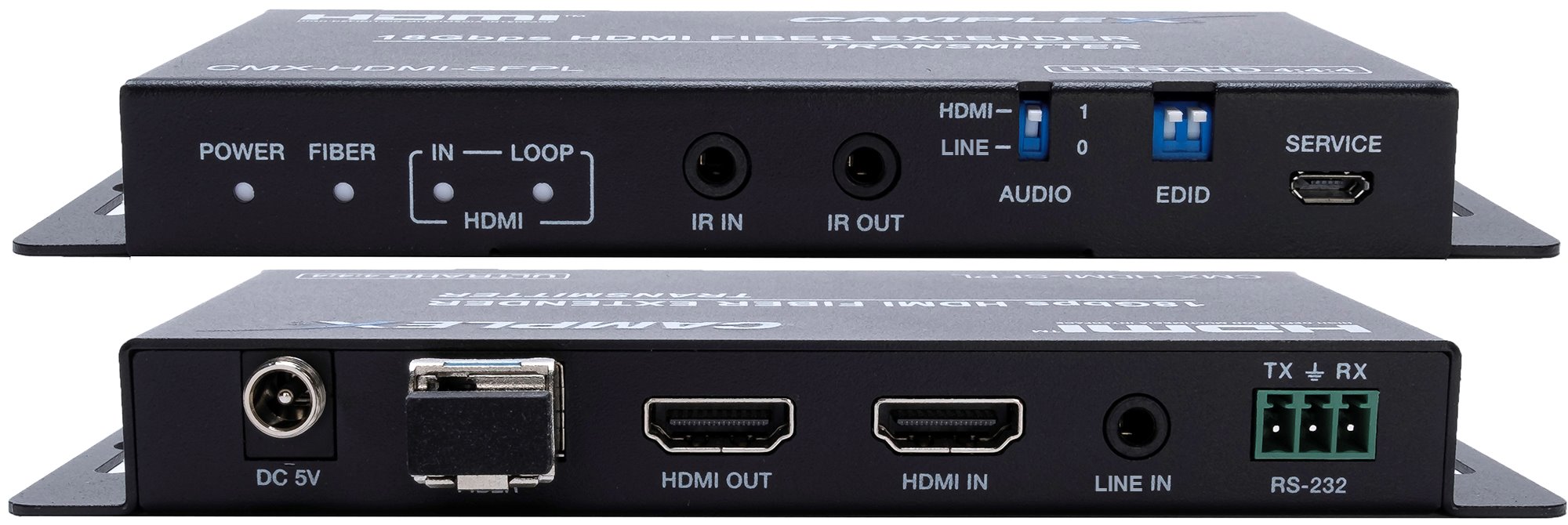

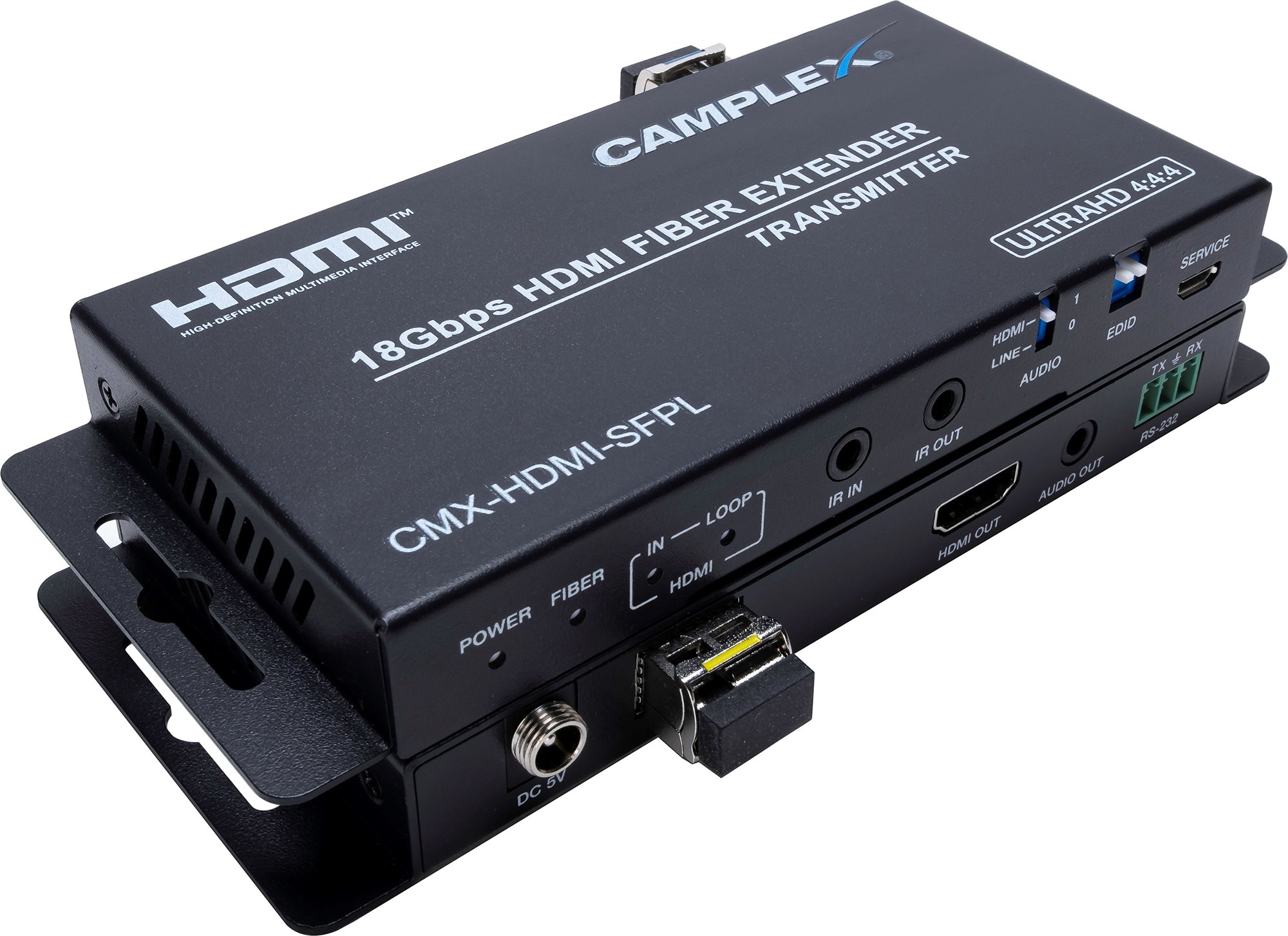

  • TX Input: 1-HDMI Type A, 1-Line In (3.5mm Stereo Mini Jack), 1-IR In (3.5mm Stereo Mini-Jack), 1-RS-232 (3.81mm Phoenix Connector)
  • TX Output: 1-HDMI Out (Type A 19-Pin Female), 1-Optical Fiber Out (LC Female), 1-IR Out (3.5mm Stereo Mini-Jack)

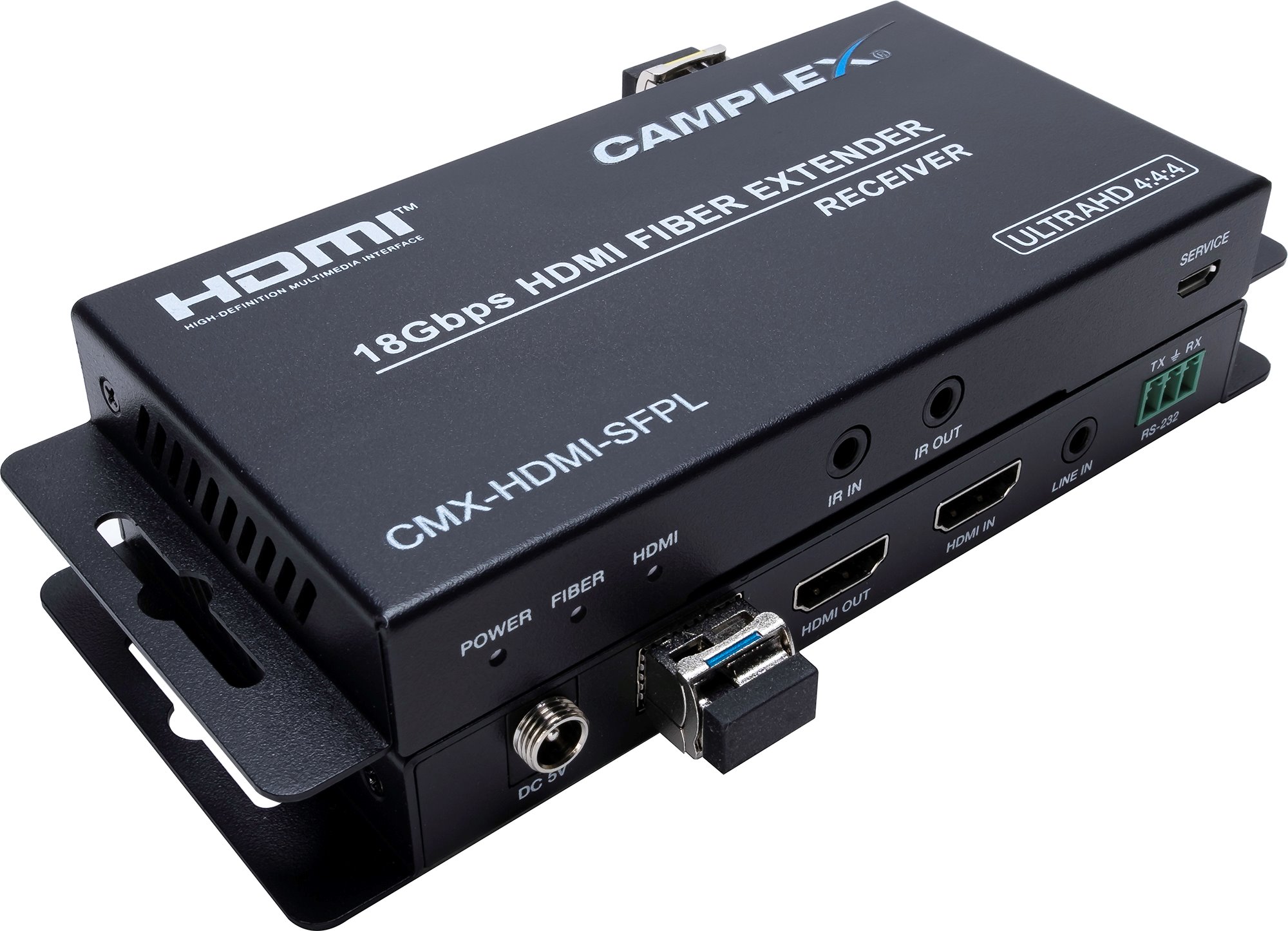

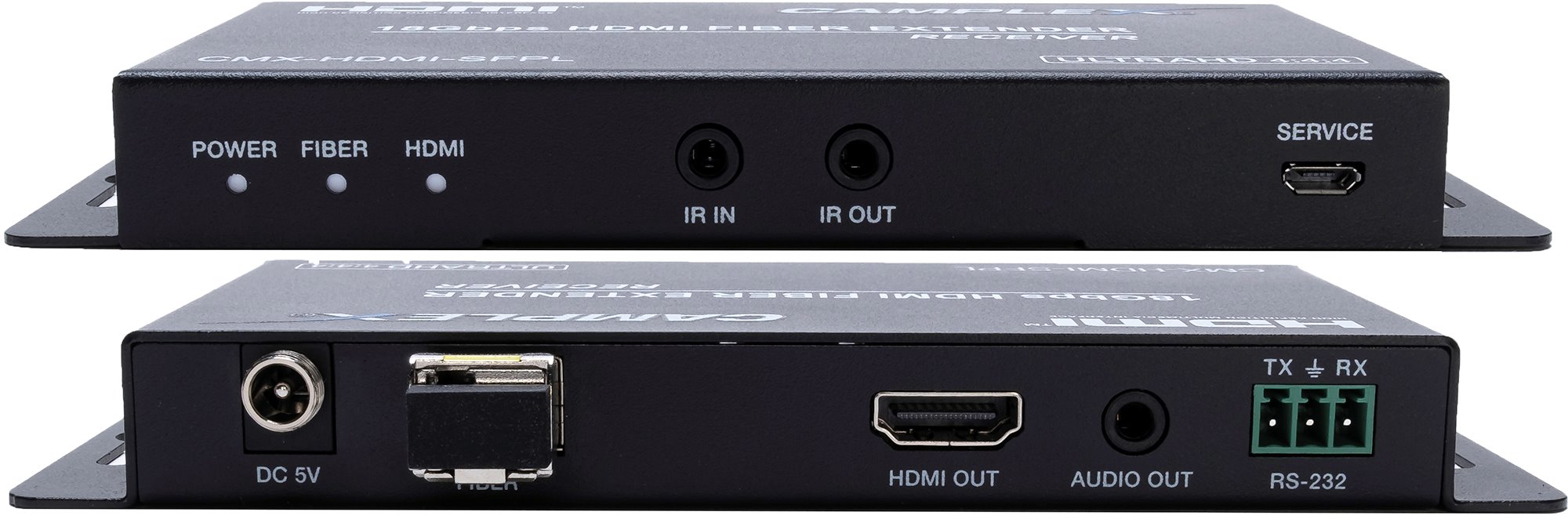

  • RX Input: 1-Optical Fiber In (LC Female), 1-IR In (3.5mm Stereo Mini-Jack)
  • RX Output: 1-HDMI Out (Type A 19-Pin Female), 1-IR Out (3.5mm Stereo Mini-Jack, 1-RS-232 (3.81mm Phoenix Connector)
  • Power Consumption: 3W
  • Power Input: AC100 - 240V 50/60Hz
  • Dimensions (each unit): 134 (W) x 68 (D) x 18mm (H)
  • Weight: TX: 9.87 oz/280g, RX: 9.81 oz/278g
  • SFP Module Specifications: Single LC Fiber
  • Class 1 Laser ROHS, FCC CE Compliant
CMX-HDMI-SFPL
