Couplers - opticalCON

Sorry, no canvas available
HF-OC2S2S Coupler - opticalCON DUO to DUO HF-OC2S2S Coupler - opticalCON DUO to DUO HF-OC2S2S Coupler - opticalCON DUO to DUO HF-OC2S2S Coupler - opticalCON DUO to DUO HF-OC2S2S Coupler - opticalCON DUO to DUO

HF-OC Couplers Camplex opticalCON couplers are simple solutions to join opticalCON DUO or QUAD cables together with minimal loss. The couplers feature automatic connector shutters and flip up dust covers. Designed for harsh environments with a durable black powder-coated aluminum housing. Perfect for sports broadcasting, stadiums and more.

Five Models:

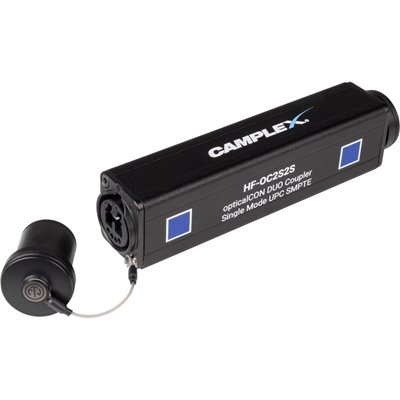

HF-OC2S2S - Single Mode, UPC, DUO SMPTE Compatible

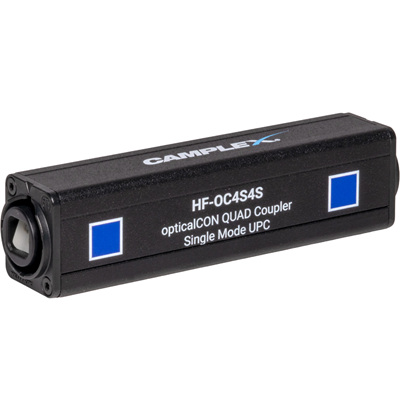

HF-OC4S4S - Single Mode, UPC, QUAD

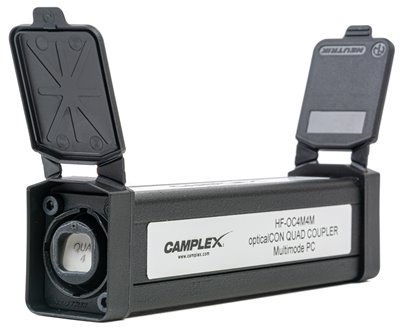

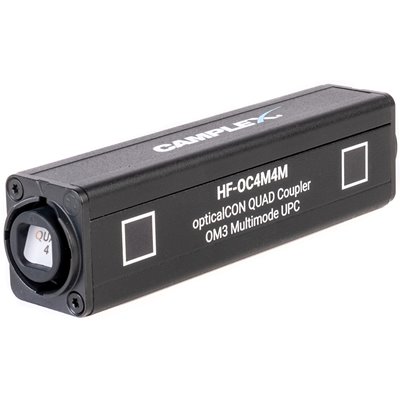

HF-OC4M4M - Multimode, UPC, QUAD

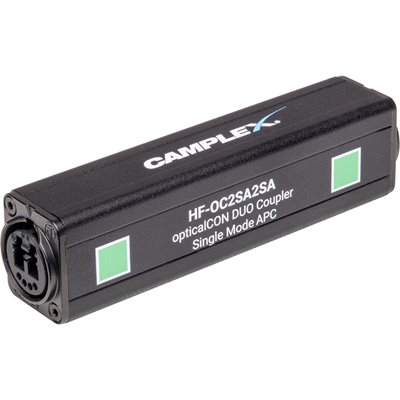

HF-OC2S2SA - Single Mode, APC, DUO SMPTE Compatible

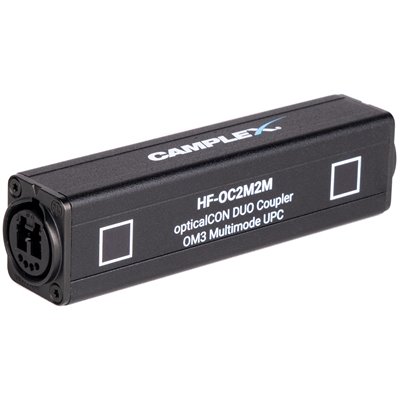

HF-OC2M2M - Multimode, UPC, DUO

HF-OC Couplers

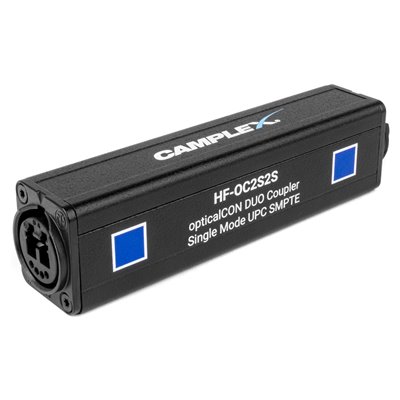

HF-OC2S2S

opticalCON DUO to DUO, UPC, Single Mode, SMPTE Compatible

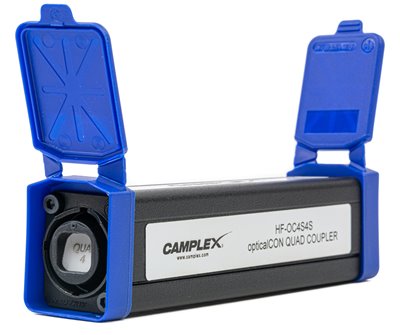

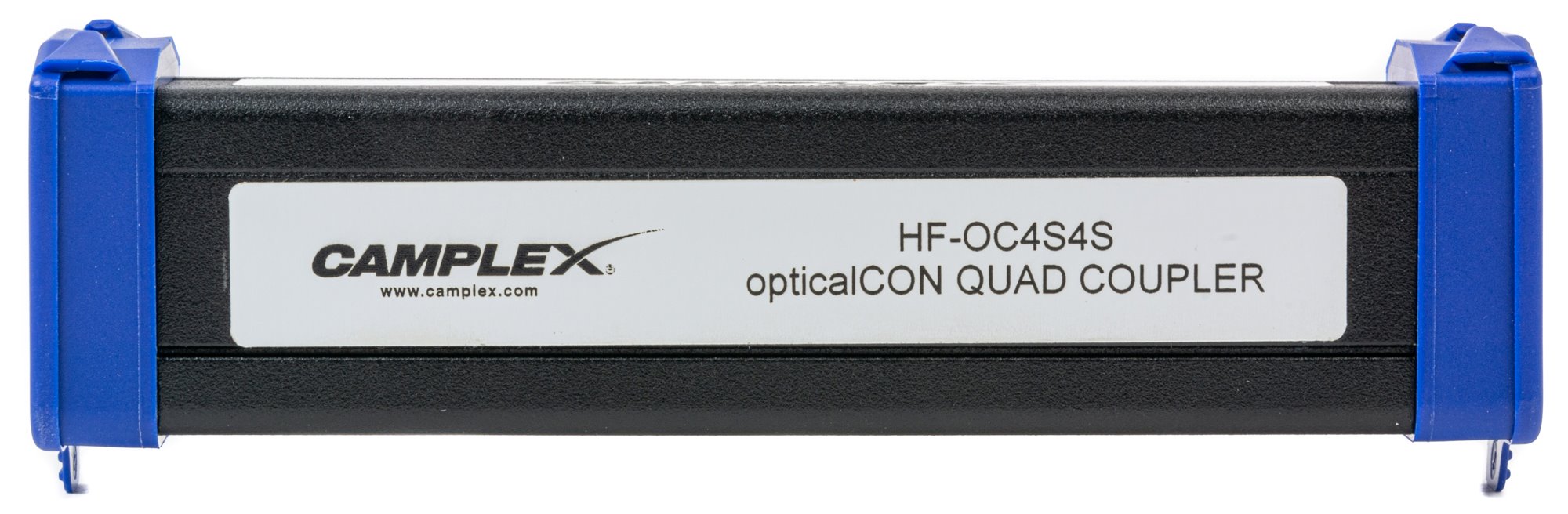

HF-OC4S4S

opticalCON QUAD to QUAD, UPC, Single Mode

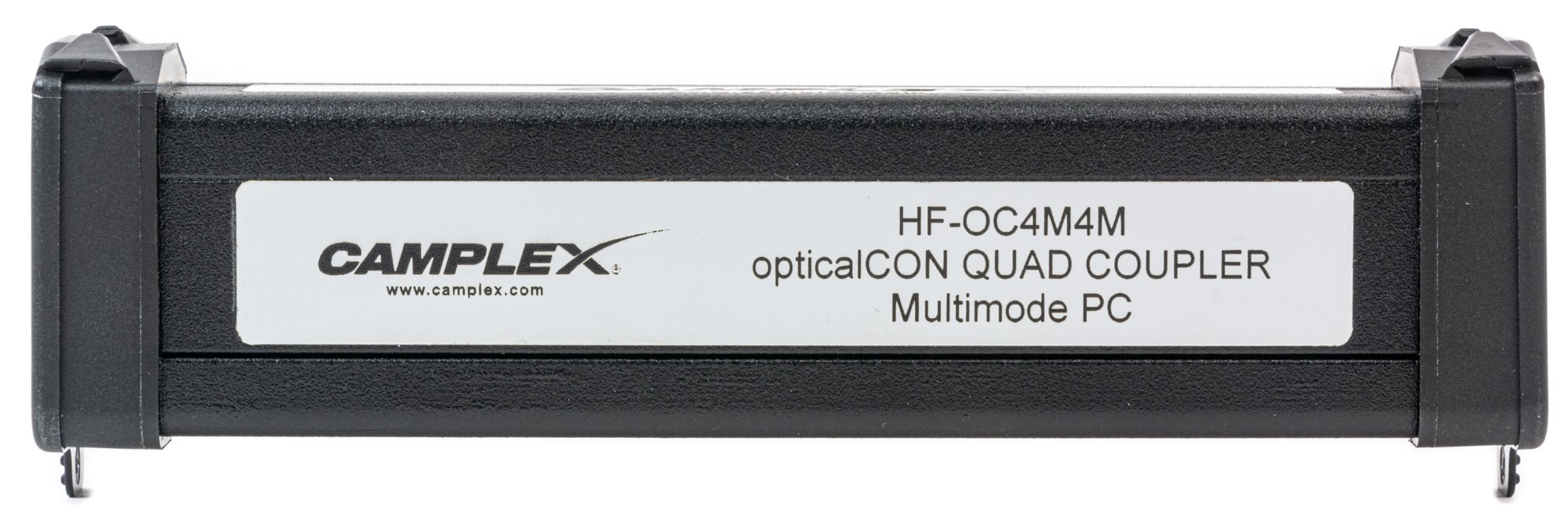

HF-OC4M4M

opticalCON QUAD to QUAD UPC, Multimode

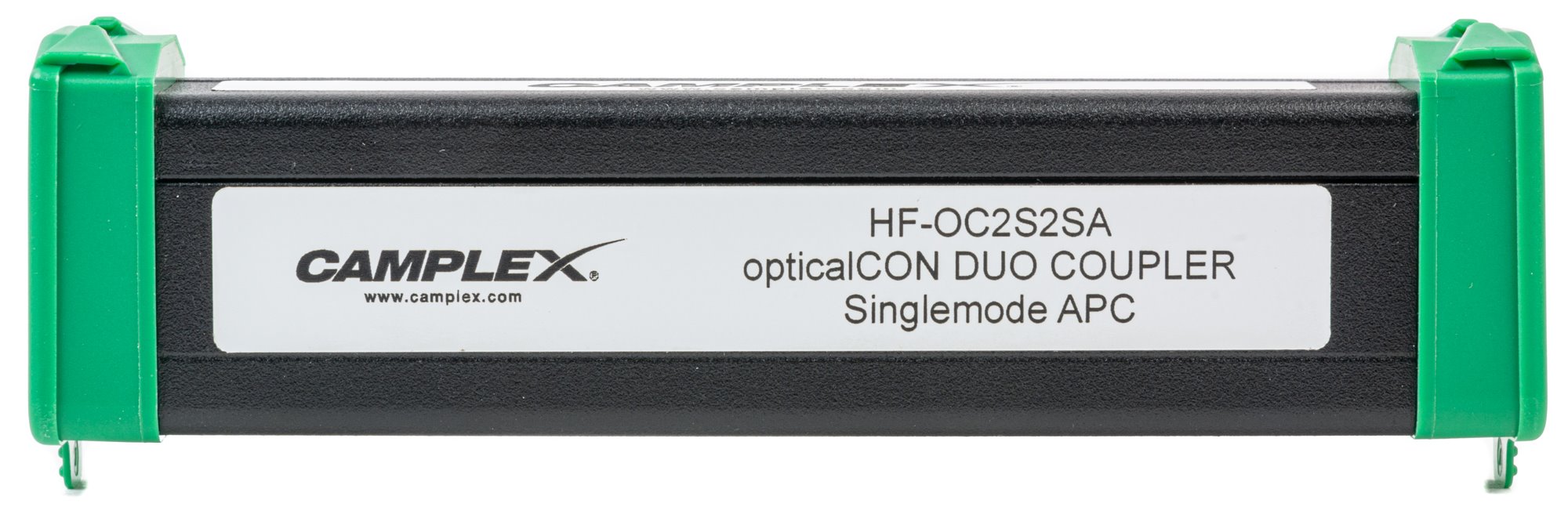

HF-OC2S2SA

opticalCON DUO to DUO, APC, Single Mode, SMPTE Compatible

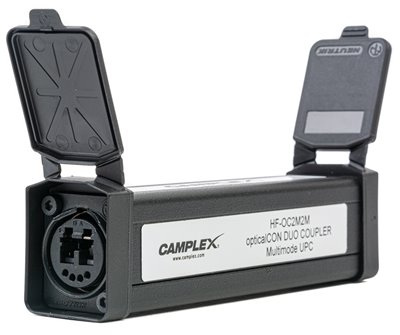

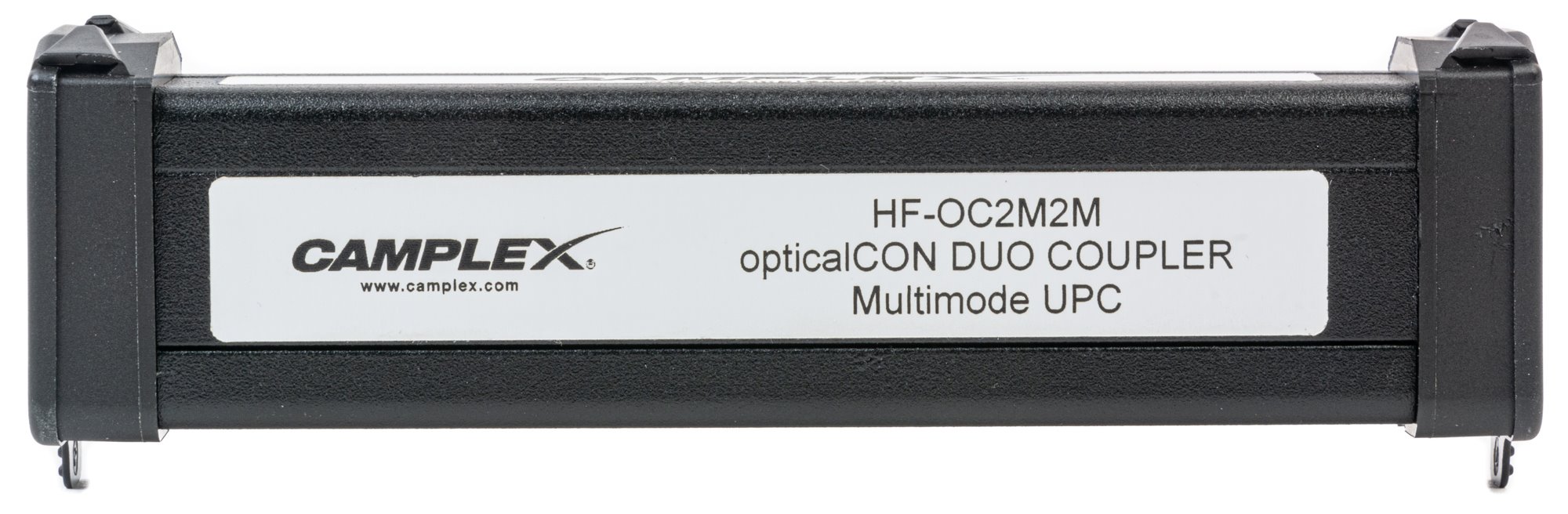

HF-OC2M2M

opticalCON DUO to DUO UPC Multimode

  •   Inline opticalCON Coupler with Minimal Loss
  •   Durable Black Powder-Coated Aluminum Housing
  •   Dimensions:  5.44 x 1.13 x 1.63 inches
  •   HF-OC2S2S Weight: 5.9 oz
  •   HF-OC4S4S Weight: 4.7 oz
  •   HF-OC4M4M Weight: 4.7 oz
  •   HF-OC2S2SA Weight: 5.9 oz
  •   HF-OC2M2M Weight: 5.9 oz

Electrical

Contact resistance: < 7 mΩ

Dielectric strength: 1,5 kVdc

Insulation resistance: > 2 GΩ (initial)

Rated current per contact: 6 - 10 A (Contact 1+4 10 A, Contact 2+3 6 A)

Rated voltage L < 50 V (1)



Mechanical

Insertion force: < 45 N

Withdrawal force: < 45 N

Lifetime: > 1000 mating cycles

Locking device: Push-Pull



Material

Contact plating: 0.2 µm Au over 2 µm Ni

Contacts: Bronze (CuSn6)

Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)

Shell: AlMgSi 0.5, black plated

Split sleeve: ceramics



Optical

Insertion loss: < 0.5 dB / connection
