12G-SDI Fiber Extender

Sorry, no canvas available

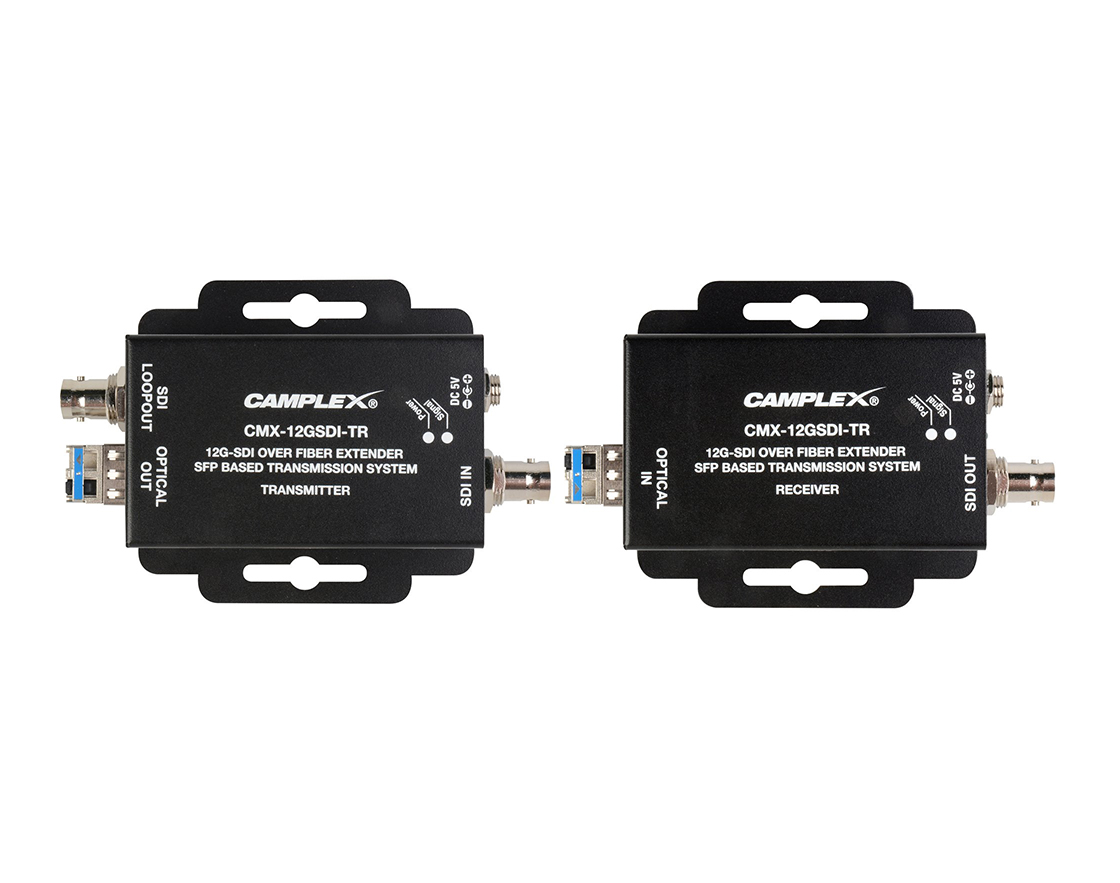

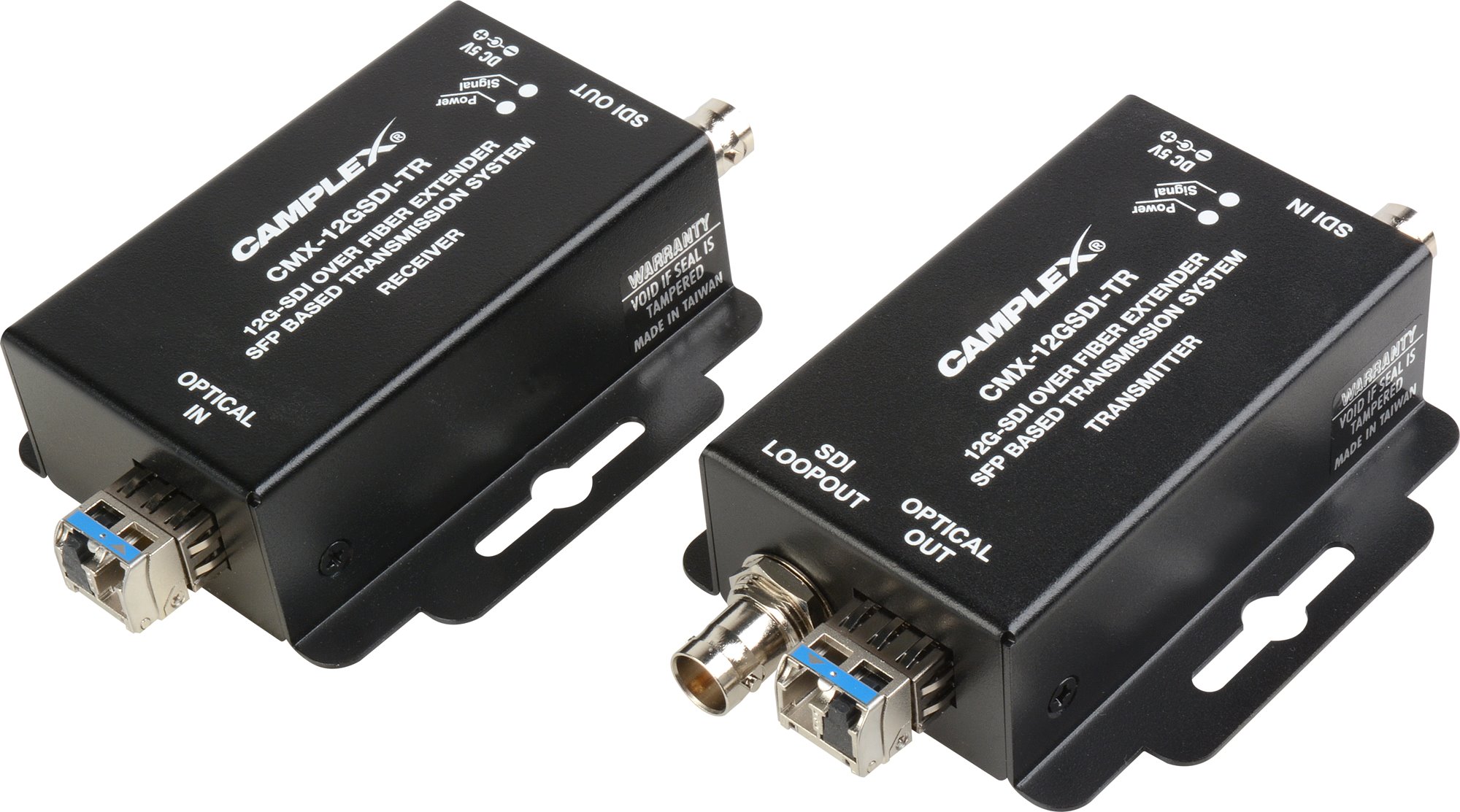

Camplex CMX-12GSDI-TR 12G SDI Over Single Mode Fiber Extender
The CMX-12GSDI-TR 12G SDI Over Single Mode Fiber Extender SFP-Based Transmission System is a broadcast quality converter and fiber extender that sends 12G/6G/3G/HD/SD-SDI up to 6.2 miles over single mode fiber with embedded audio. The CMX-12GSDI-TR SFP-based extender provides instant fiber connectivity. Designed for professional broadcast use in video production and editing, this transmission system features automatic equalizing and reclocking and an SDI loop out on the transmitter.

Includes two 5VDC/2A power supplies and two SFPs.

CMX-12GSDI-TR
  •  SDI to fiber optic converter and fiber extender
  •  Extends 12G/6G/3G/HD/SD-SDI up to 6.2 miles over single mode fiber
  •  SFP based (small form-factor pluggable) fiber connector
  •  Embedded audio
  •  1 Reclocking SDI loop out on TX
  •  Immune to RP-198 Interference

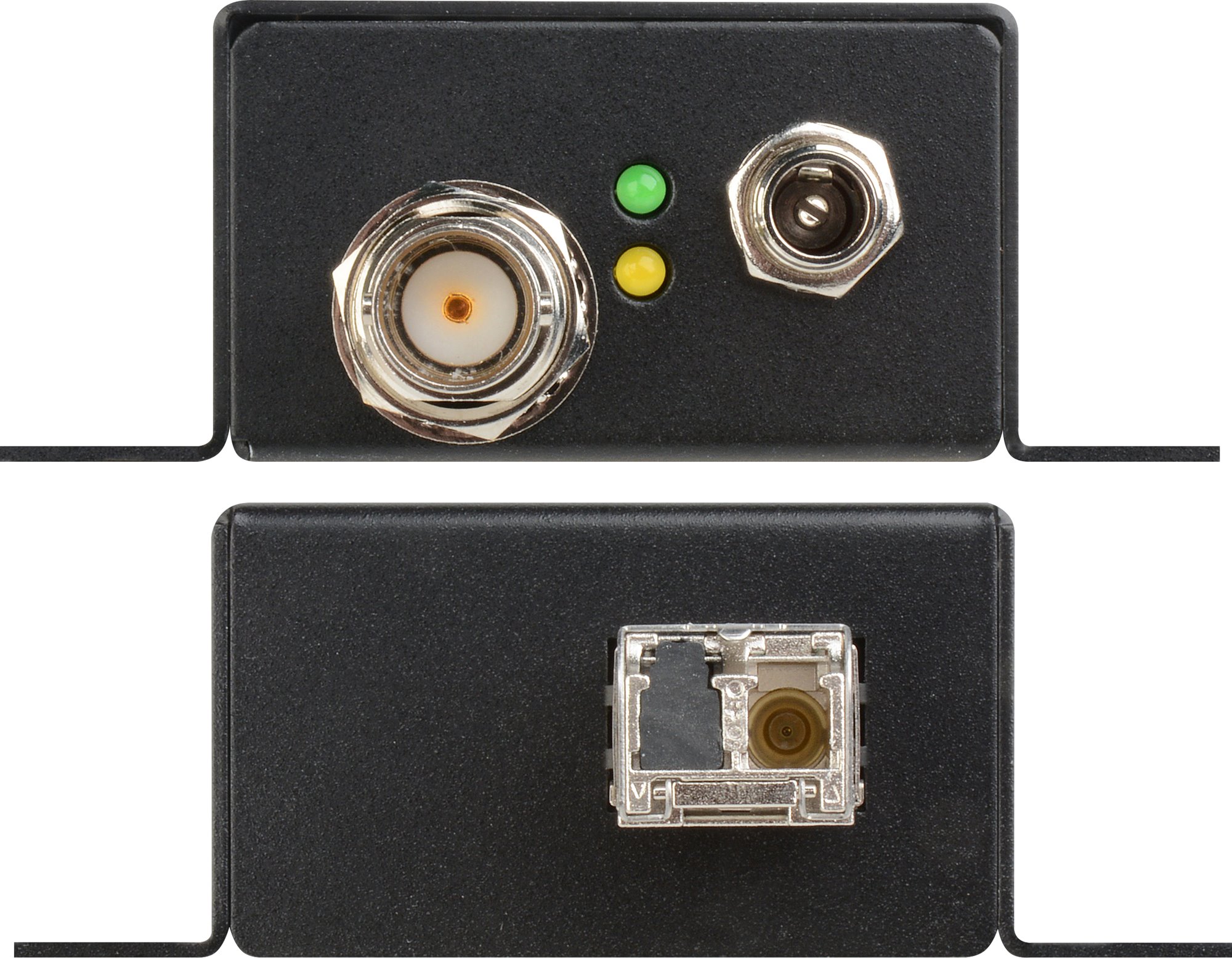

  •  Input signal detection LED
  •  Rugged metal housing
  •  Supports SMPTE-292M(270Mbps), SMTPE- 259M(360Mbps), SMPTE-292M / HDTV (1.485Gbps and 1.485/1.001Gbps), SMPTE 424M (2.97Gbps and 2.97/1.001Gbps), SMPTE
  •  2082-1/ HDTV (5.94Gbps and 5.94/1.001Gbps), SMPTE 2082-2 / HDTV (11.88Gbps and 11.88/1.001Gbps), DVB ASI (270Mbps)
  •  Data Rates: 270 / 1483 / 1485 / 2967 / 2970 / 5940 / 11880 Mbps
  •  Input Impedance 75Ω

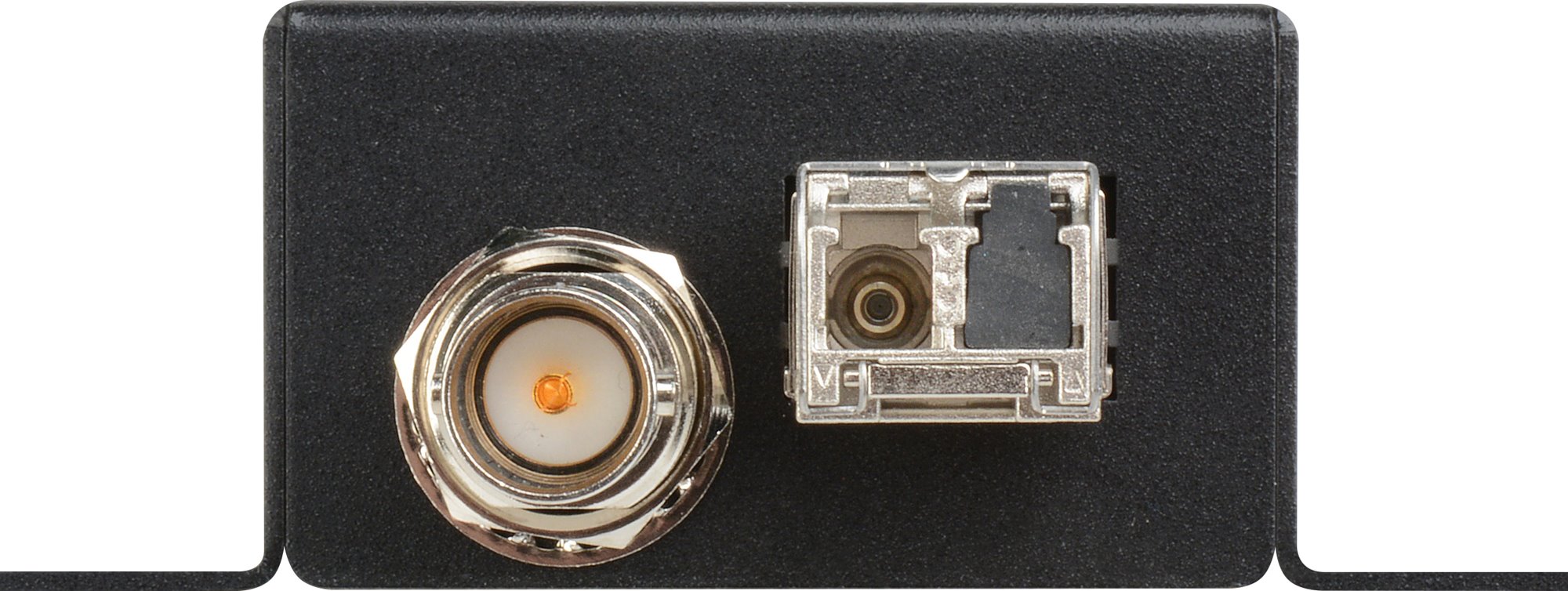

  •  Input: TX - BNC (SDI)/ RX - SFP LC Simplex Single mode (SDI)
  •  Output: TX - SFP LC Simplex Single mode (SDI), BNC (SDI)/ RX - BNC (SDI)
  •  Power Consumption: 3W
  •  Dimensions: 2.9 x 2.9 x 1.0 in / 74 x 74 x 26 mm each unit
  •  Weight: 7.4 oz / 211g each unit
