CMX-X1QLC02S
QPC QMini HMA Compatible 2-Fiber Single Mode Expanded Beam to Duplex LC Breakout Cable
CMX-X1QLC04S
QPC QMini HMA Compatible 4-Fiber Single Mode Expanded Beam to Duplex LC Breakout Cable
CMX-X1QLC04M
QPC QMini HMA Compatible 2-Fiber OM4 Multimode Expanded Beam to Duplex LC Breakout Cable

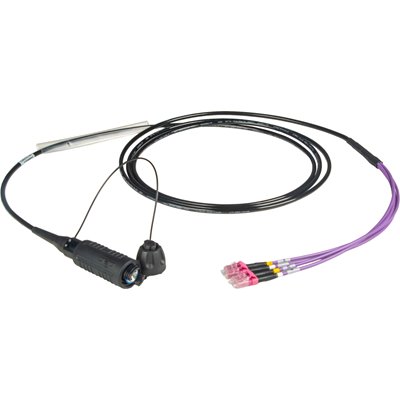

CMX-X1QLC04M
QPC QMini HMA Compatible 4-Fiber OM4 Multimode Expanded Beam to Duplex LC Breakout Cable
- Polyurethane jacket provides abrasion, cut, and chemical resistance
- QPC QMini Intermateability: Neutrik FIBERFOX Tyco Pro Beam Jr., Amphenol TACBeam, Glenair GMA, Stratos HMA, Fibreco Junior, DiGiCo Compatible
- 2Ch / 4Ch Hermaphroditic Expanded Beam Connector System (will use respective Channel call)
- Robust, lightweight, rugged, tight-buffered cables designed for military tactical field use and commercial applications
- Helically stranded cable core for flexibility, deployment survivability, and exceptional mechanical protection for the optical fibers
Camplex Tactical Single Mode:
- Jacket Material: Polyurethane
- Buffer Material: Hard Elastomeric
- Cable Diameter: 0.22in (5.5mm)
- Fiber Type: Bend Tolerant Single Mode
- Core/Cladding Diameter (µm): 9/125
- Numeric Aperture: 0.2
- Wavelength (nm): Single Mode: 1310/155
- Maximum Cabled Attenuation (dB/km): 0.4/0.4
- Primary Coating Diameter (µm): 245
- Secondary Coating Diameter (µm): 900
- Zero Dispersion Slope (ps.nm2-km): 0.092
- Proof Test Level (kpsi): 100
- Impact Resistance: 1,500 Impacts
- Crush Resistance: 1,800 N/cm
- Temperature:
- Operating: -67°F to 185°F (-55°C to +85°C)
- Storage: -94°F to 185°F (-70°C to +85°C)
- Max Tensile Load:
- Installation: 1800 N (400lbs)
- Operating: 600 N (130lbs)
- Min Bend Radius:
- Installation: 2.2in (5.5cm)
- Operating: 1.1in (2.8cm)
Camplex Tactical OM4 Multimode Cable:
- Jacket Material: Polyurethane
- Buffer Material: Hard Elastomeric
- Cable Diameter:
- 2-Channel: 0.20in (5.0mm)
- 4-Channel: 0.22in (5.5mm)
- Fiber Type: Laser Optimized OM4
- Core/Cladding Diameter (µm): 50/125
- Numeric Aperture: 0.2
- Wavelength (nm): 850/1310
- Gigabit Ethernet Distance (m): 1040/600
- 10-Gigabit Ethernet Distance (m): 550/300
- Maximum Cabled Attenuation (dB/km): 3.0/1.0
- Minimum Laser EMB Bandwidth (MHz-km): 4700/500
- Minimum OFL LED Bandwidth (MHz-km): 3500/500
- Primary Coating Diameter (µm):
- 2-Channel: 500
- 4-Channel: 245
- Secondary Coating Diameter (µm): 900
- Proof Test Level (kpsi): 100
- Impact Resistance: 1,500 Impacts
- Crush Resistance: 1,800 N/cm
- Temperature:
- Operating: -67°F to 185°F (-55°C to +85°C)
- Storage: -94°F to 185°F (-70°C to +85°C)
- Max Tensile Load:
- Installation: 1800 N (400lbs)
- Operating: 600 N (130lbs)
- Min Bend Radius:
- Installation:
- 2-Channel: 2.0in (5.0cm)
- 4-Channel: 2.2in (5.5cm)
- Operating:
- 2-Channel: 1.0in (2.5cm)
- 4-Channel: 1.1in (2.8cm)
QMini Connector:
- Insertion Loss: 0.50-1.5dB Max.
- Impact Resistance: 8 Impacts @ 8FT (2.5MT),EIA/TIA-455-2
- Shock Resistance: 50g for 11ms, EIA/TIA-455-14, Condition A
- IP Rating: IP68
- Lifetime: 3000 Cycles
- Operating Temperature: -50°F to 185°F (-46°C to +85°C)
Senko Connectors:
- Lifetime: 500 Cycles
- Ferrule Material: Zirconia
- Ferrule Diameter:
- 2-Channel: 127
- 4-Channel: 125
- Typical Insertion Loss (dB): 0.1
- Max. Insertion Loss (dB): 0.2
- Typical Return Loss (dB): ≥25
