Camplex Neutrik FIBERFOX OM3 Multimode Expanded Beam Fiber Optic Cables & Reels

Sorry, no canvas available

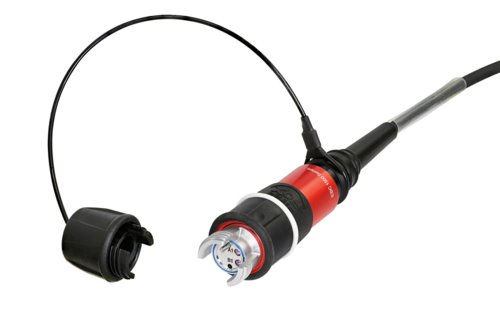

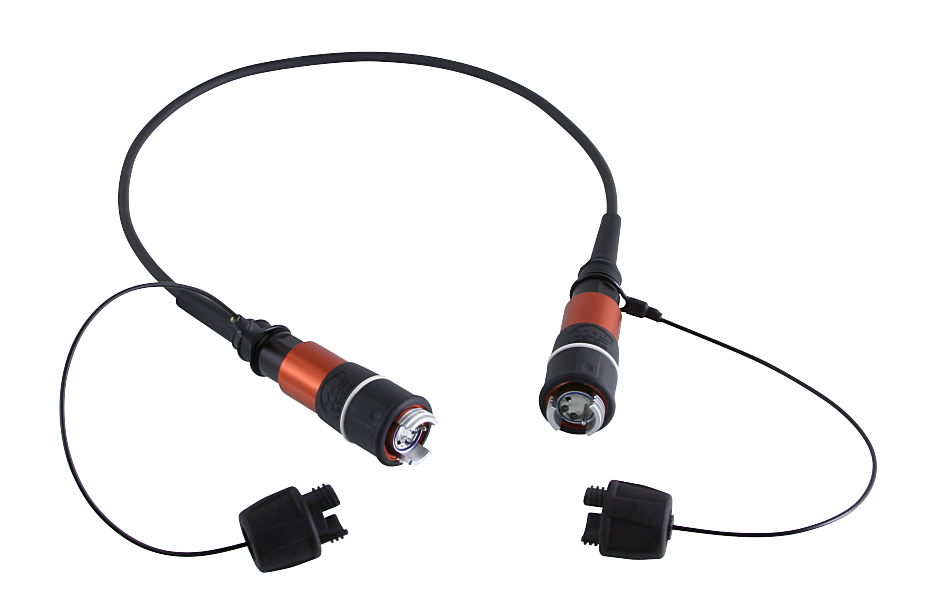

FIBERFOX OM3 Multimode Expanded Beam Fiber Optic Cable FIBERFOX OM3 Multimode Expanded Beam Fiber Optic Cable

The Camplex FIBERBOX assemblies feature expanded beams and hermaphroditic connectors designed for the harshest of environments where constant performance and reliability are crucial. Excelling in applications such as lighting, network, PA, video, broadcast, defense & government, railway, and petrochemical, these assemblies are designed according to the MIL-DTL-83526 standard to fit all associated connectors. The expanded beam technology and the precision optical alignment allow the assemblies to have extensive immunity against dust, mud, liquids, and other contaminations. The FIBERBOX hermaphroditic coupling eliminates the need for adaptors and male & female mating halves. The assemblies are available in a variety of snake and reel lengths.

CMX-XBN02M-0010

  •  Heavy-Duty IP68 Rated Connectors (even unprotected)
  •  No Special Cleaning or Measurement Tools Required
  •  PUR Flame-Retardant
  •  Halogen-Free
  •  Bend Tolerant
  •  Wear-Free Connectors, > 5.000 Mating Cycles Without Any Maintenance
  •  Cables are Prolongable Direct, No Couplers Required
  •  Ready-Made up with Connectors EBC1502
  •  Tensile Strength: 1,800N
  •  Compressive Load: 50,000N
  •  Lifetime: > 10000 Mating Cycles
  •  Free fall Resistance: 500 Falls Onto Concrete from 1.2M Height
  •  Bump resistance: 4000 Bumps @ 40g Acceleration
  •  Protection Class: IP68 (6m Water Depth and 30 min) Mated and Unmated
  •  Temperature Range: -40°C to + 70°C
  •  Insertion loss: Typ. 0.7dB per Connector / Max. 1.0dB per Connector
  •  Minimal Bending Radius: 5 cm
  •  Number of Fibers: 2 / 4
