Camplex CMX-X2Q QPC QMicro Fiber Optic Assemblies

Sorry, no canvas available

These tactical Camplex assemblies feature QPC’s QMicro Expanded Beam Fiber Optic Connectors, a smaller version of QPC’s QMini connectors, which are designed to meet the requirements of MIL-PRF-83526/20 & /21 Military Specifications. Designed for harsh environments, Expanded Beam fiber optic connectors use non-physical contact fiber optic termini that are fully sealed behind an anti-reflective coated ball lens. By expanding the beam to a large size, this lens enhances optical alignment and minimizes dust, debris, vibration, and other environmental effects. Since the optical surfaces/end faces of the termini do not wear during use, the QMicro connector is small yet incredibly durable, with more than 3,000 mating cycles. Available in 2 or 4 Channels and a variety of lengths.

CMX-X2Q02S

2-Fiber QPC Q-Micro HMC/MX Compatible Single Mode Expanded Beam Fiber Cable

CMX-X2Q02SR

2-Fiber QPC QMicro HMC/MX Compatible Single Mode Expanded Beam Fiber Cable on Reel

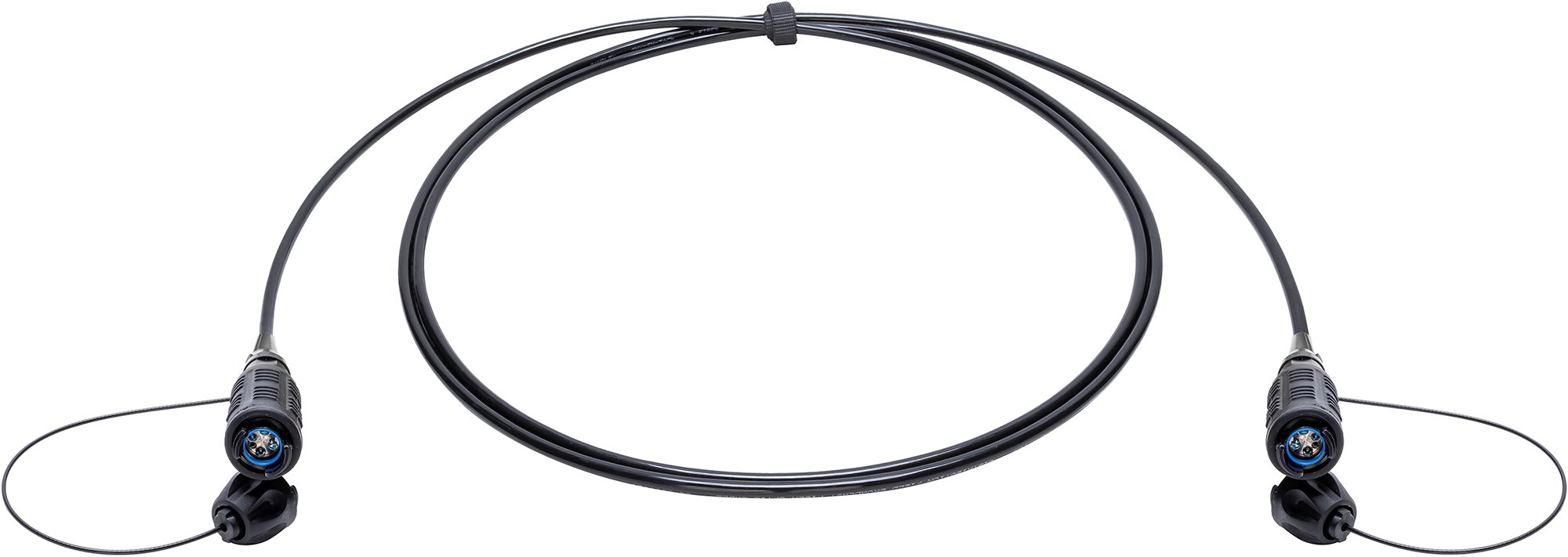

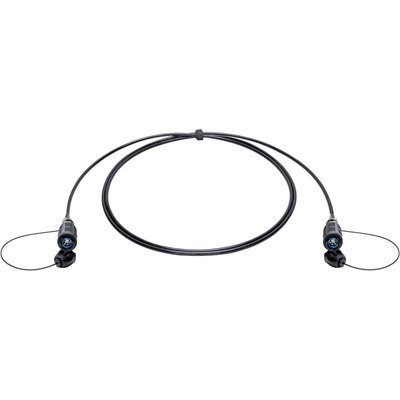

CMX-X2Q04S

4-Fiber QPC QMicro HMC/MX Compatible Single Mode Expanded Beam Fiber Cable

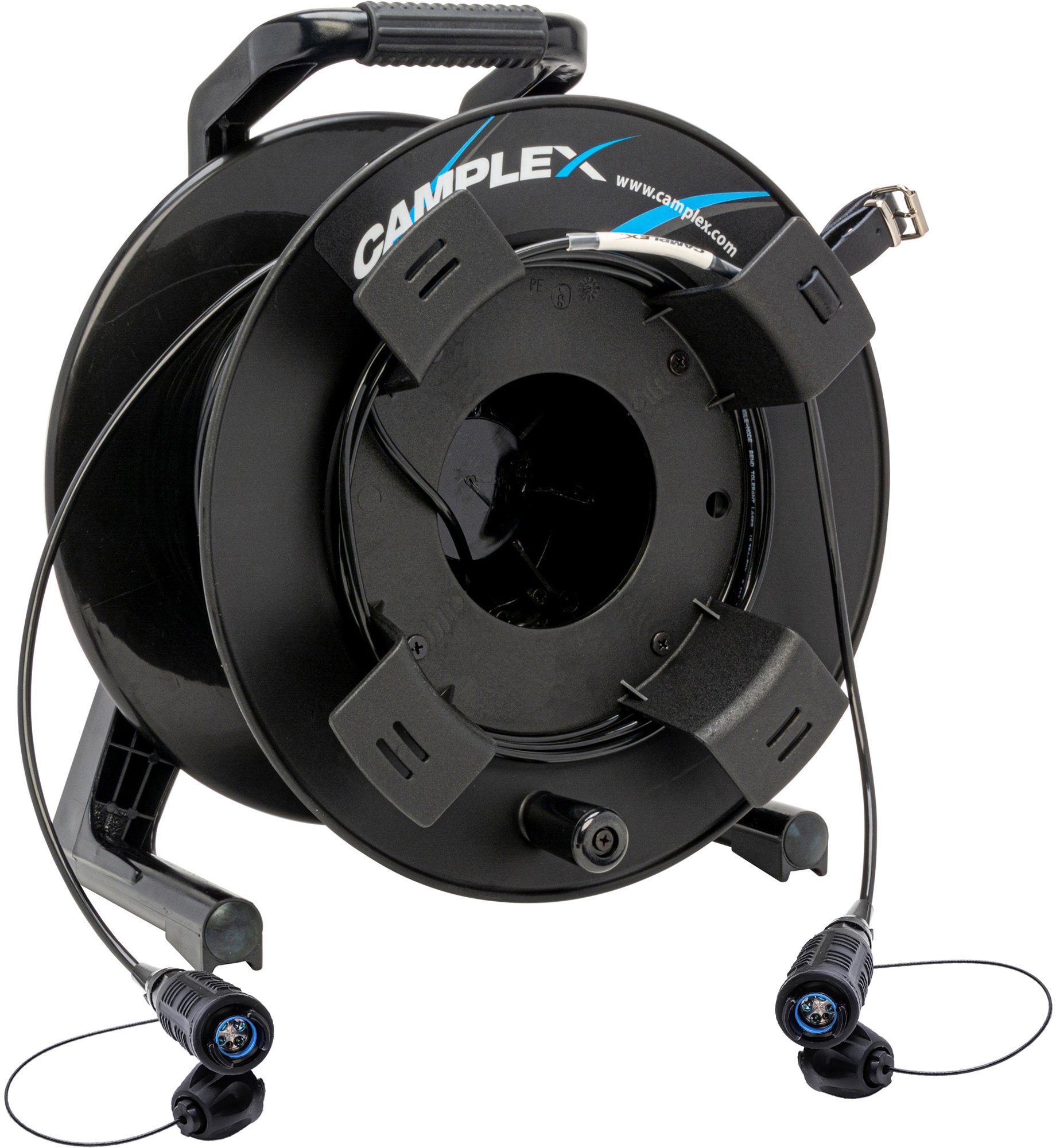

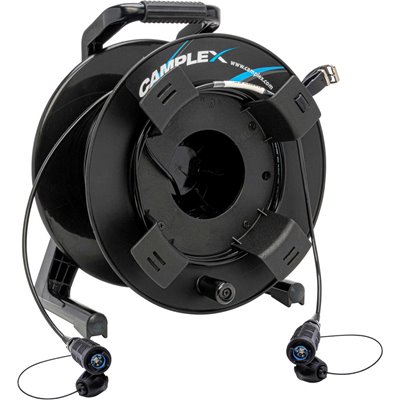

CMX-X2Q04SR

4-Fiber QPC QMicro HMC/MX Compatible Single Mode Expanded Beam Fiber Cable on Reel

CMX-X2Q02M

2-Fiber QPC QMicro HMC/MX Compatible OM4 Multimode Expanded Beam Fiber Cable

CMX-X2Q02MR

2-Fiber QPC QMicro HMC/MX Compatible OM4 Multimode Expanded Beam Fiber Cable on Reel

CMX-X2Q04M

QPC QMicro HMC/MX Compatible 4-Fiber OM4 Multimode Expanded Beam Fiber Cable

CMX-X2Q04MR

4-Fiber QPC QMicro HMC/MX Compatible OM4 Multimode Expanded Beam Fiber Cable on Reel

  • 2 Channel/4 Channel Hermaphroditic Expanded Beam Connector System
  • Rubber Grip Plugs
  • Intermateability: Neutrik FIBERFOX, Tyco Pro Beam Mini, Stratos HMC, Fibreco Mini 2, Telecast MX
  • Sealed to IP68 Rating
  • Lightweight MIL-Tactical Cable Ideal for use in Harsh Environments Where Deployment and Retrieval for Reuse are Required

Single Mode Specifications:

Camplex CMX-SM-TAC4 Fiber:

  • Fiber Type: Bend Tolerant Single Mode
  • Core/Cladding Diameter (µm): 9/125
  • Wavelength (nm): 1310/1550
  • Maximum Cabled Attenuation (dB/km): 0.4/0.4
  • Primary Coating Diameter (µm): 245
  • Secondary Coating Diameter (µm): 900
  • Zero Dispersion Slope (ps.nm2-km): 0.092
  • Proof Test Level (kpsi): 100
  • Jacket Material: Polyurethane
  • Buffer Material: Hard Elastomeric
  • Cable Diameter: 0.22in (5.5mm)
  • Impact Resistance: 1,500 Impacts
  • Crush Resistance: 1,800 N/cm
  • Max Tensile Load:
    • Installation: 1,800 N (400 lbs)
    • Operating: 600 N (130 lbs)
  • Min Bend Radius:
    • Installation: 2.2in (5.5cm)
    • Operating: 1.1in (2.8cm)
  • Temperature:
    • Operating: -40°F to 185°F (-40°C to +85°C)
    • Storage: -94°F to 185°F (-40°C to +85°C)

QMicro Connector:

  • Insertion Loss: 0.75-2.0dB Max.
  • Return Loss: -34dB
  • Lifetime: 3000 Cycles
  • IP Rating: QMicro Plug and Receptacle with Backshells: IP68 - Dust Tight, No ingress of dust; complete protection against contact, Water Immersion, 1m Testing Conditions & Duration – Plug with Dust Cover and Mated Plug / Receptacle, 3 Meters for 24 Hours
  • Vibration Rating: 10 to 2000Hz / 10g, EIA/TIA-455-11, Condition III and 10 to 2000Hz / 20g / 9g RMS Avg, EIA/TIA-455-11, Condition IV
  • Impact Rating: 8 Impacts @ 8FT (2.5MT), EIA/TIA-455-2
  • Shock Rating: 50g for 11ms, EIA/TIA-455-14, Condition A
  • Operating Temperature: -50°F to 185°F (-46°C to +85°C)

Multimode Specifications:



Camplex Multimode Fiber:

  • Fiber Type:
    • 2 Channel: Laser Optimized OM4
    • 4 Channel: Laser Optimized Bend Insensitive OM4
  • Core/Cladding Diameter (µm): 50/125
  • Numeric Aperture: 0.2
  • Wavelength (nm): 850/1310
  • Gigabit Ethernet Distance (m): 1040/600
  • 10-Gigabit Ethernet Distance (m): 550/300
  • Maximum Cabled Attenuation (dB/km): 3.0/1.0
  • Minimum Laser EMB Bandwidth (MHz-km): 4700/500
  • Minimum OFL LED Bandwidth (MHz-km): 3500/500
  • Primary Coating Diameter (µm):
    • 2 Channel: 500
    • 4 Channel: 245
  • Secondary Coating Diameter (µm): 900
  • Proof Test level (kpsi): 100
  • Jacket Material: Polyurethane
  • Buffer Material: Hard Elastomeric
  • Cable Diameter:
    • 2 Channel: 0.20in (5.0mm)
    • 4 Channel: 0.22in (5.5mm)
  • Impact Resistance: 1500 impacts
  • Crush Resistance: 1800 N/cm
  • Flex Resistance: 2000 cycles
  • Max Tensile Load:
    • Installation: 1,800 N (400 lbs)
    • Operating: 600 N (130 lbs)
  • Min Bend Radius:
    • Installation:
      • 2 Channel: 2.0in (5cm)
      • 4 Channel: 2.20in (5.5cm)
    • Operating:
      • 2 Channel: 1.0in (2.5cm)
      • 4 Channel: 1.1in (2.8cm)
  • Temperature:
    • Operating:
      • 2 Channel: -67°F to 185°F (-55°C to +85°C)
      • 4 Channel: -40°F to 185°F (-40°C to +85°C)
    • Storage: -94°F to 185°F (-70°C to +85°C)

QMicro Connector:

  • Insertion Loss: 0.50-1.5dB Max.
  • Lifetime: 3000 Cycles
  • IP Rating: QMicro Plug and Receptacle with Backshells: IP68 - Dust Tight, No ingress of dust; complete protection against contact, Water Immersion, 1m Testing Conditions & Duration – Plug with Dust Cover and Mated Plug / Receptacle, 3 Meters for 24 Hours
  • Vibration Rating: 10 to 2000Hz / 10g, EIA/TIA-455-11, Condition III and 10 to 2000Hz / 20g / 9g RMS Avg, EIA/TIA-455-11, Condition IV
  • Impact Rating: 8 Impacts @ 8FT (2.5MT), EIA/TIA-455-2
  • Shock Rating: 50g for 11ms, EIA/TIA-455-14, Condition A
  • Operating Temperature: -50°F to 185°F (-46°C to +85°C)
