Breakout Boxes—Rack Mounts

Sorry, no canvas available

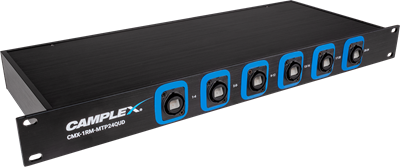

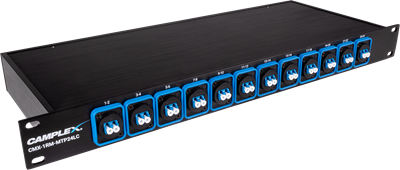

Camplex's 1RM-MTP series of 1RU breakout boxes adapts 12-channel opticalCON MTP to your choice of opticalCON QUAD, opticalCON DUO, LC Duplex, or ST connectors. The 1RM-MTP features color-coded gaskets according to the fiber type, and each channel is marked for fast and easy identification.  The 1RM-MTP series is available in single mode and multimode.

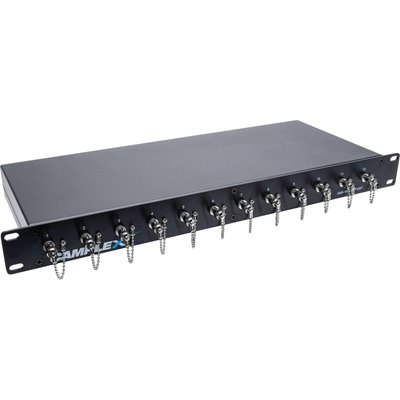

CMX-1RM-MTP12ST

Camplex CMX-1RM-MTP12ST opticalCON MTP NO12FDW-A to (12) ST Female Single Mode Breakout

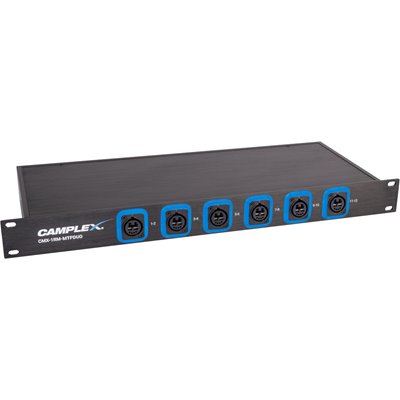

CMX-1RM-MTPDUO

Camplex CMX-1RM-MTPDUO opticalCON MTP NO12FDW-A to (6) Single Mode DUO NO4FDW-1-A

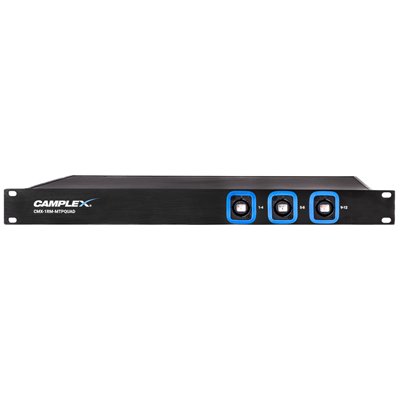

CMX-1RM-MTPQUAD

Camplex CMX-1RM-MTPQUAD opticalCON MTP NO12FDW-A to (3) Single Mode QUAD NO4FDW-A

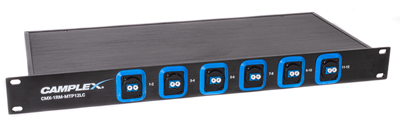

CMX-1RM-MTP12LC

Camplex Single Mode opticalCON MTP NO12FDW-A to (6) Duplex LC Rack Mount Breakout Box

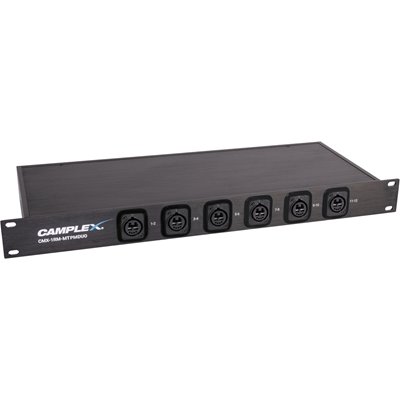

CMX-1RM-MTPMDUO

Camplex opticalCON MTP NO12FDW-A to (6) MM DUO NO4FDW-1-A Rack Mount

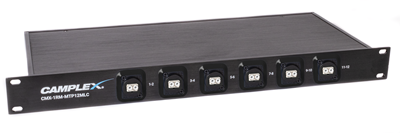

CMX-1RM-MTP12MLC

Camplex 1RM-MTP12MLC OM3 Multimode opticalCON MTP NO12FDW-A to (6) Duplex LC Rack Mount Breakout Box

  • Lightweight 1RU aluminum enclosure
  • High-Quality Neutrik connectors
  • Connector gaskets are color-coded according to Fiber Mode for easy identification
  • Low-loss opticalCON MTP connectors
  • Internal Camplex MTP breakout cable
  • All channels are marked on the front and back of the enclosure for easy identification

Camplex Single Mode MTP APC connector:

  • Insertion Loss: <0.35dB
  • Return Loss: >60dB

Camplex OM3 Multimode MTP PC Connector:

  • Insertion Loss: <0.35dB
  • Return Loss: >20dB

Neutrik NO12FDW-A Connector:

  • Insertion Force: < 45 N
  • Withdrawal Force: < 45 N
  • Lifetime: 2500 Mating cycles
  • Locking Force: 1000 N
  • Locking Device: Push-Pull
  • Insertion Loss: < 0.9 dB / connection

Neutrik NO2-4FDW-A Connector:

  • Dielectric Strength: 1.5 kVdc
  • Insertion Force: < 45 N
  • Withdrawal Force: < 45 N
  • Lifetime: 5000 mating cycles
  • Locking Force: 1000 N
  • Locking Device: Push-Pull
  • Insertion Loss: < 0.4 dB / connection

Neutrik NO4FDW-A

  • Insertion Force: < 45 N
  • Withdrawal Force: < 45 N
  • Lifetime: 5000 mating cycles
  • Locking Device: Push-Pull

ST Connectors:

  • Insertion Loss: ≤0.2dB
  • Lifetime: 1000 Mating Cycles
