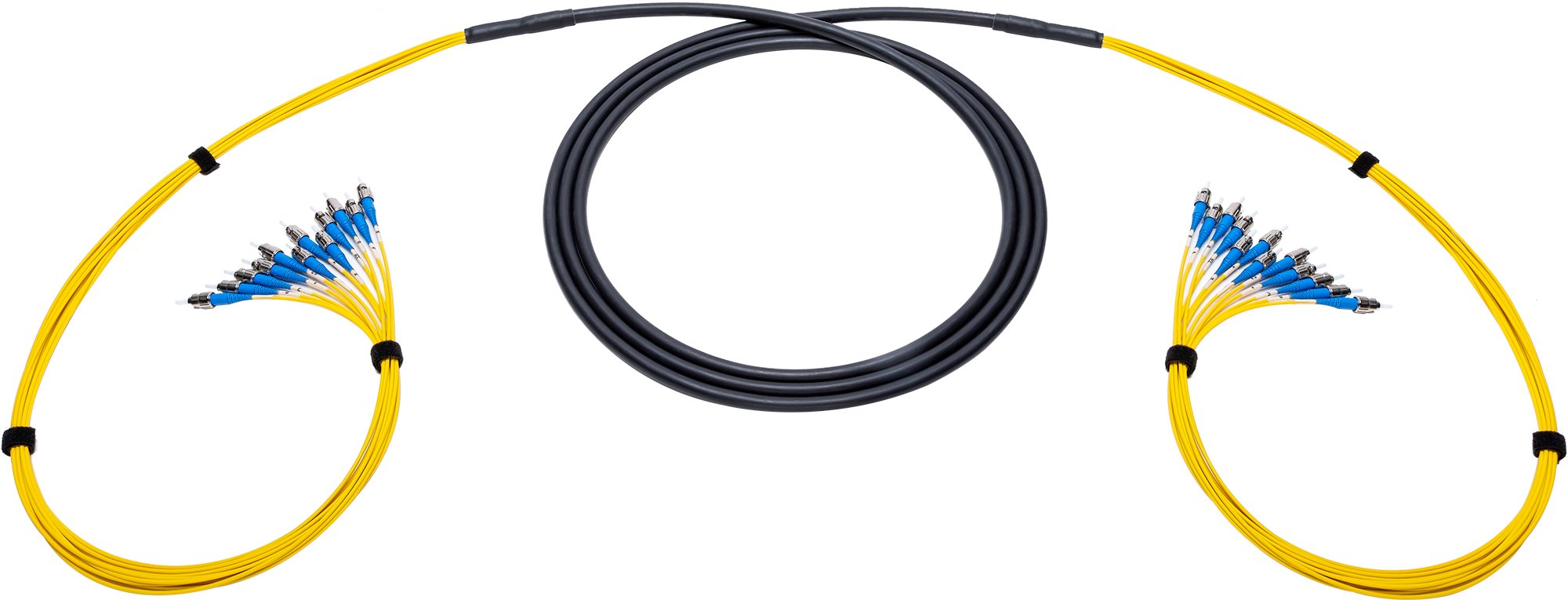

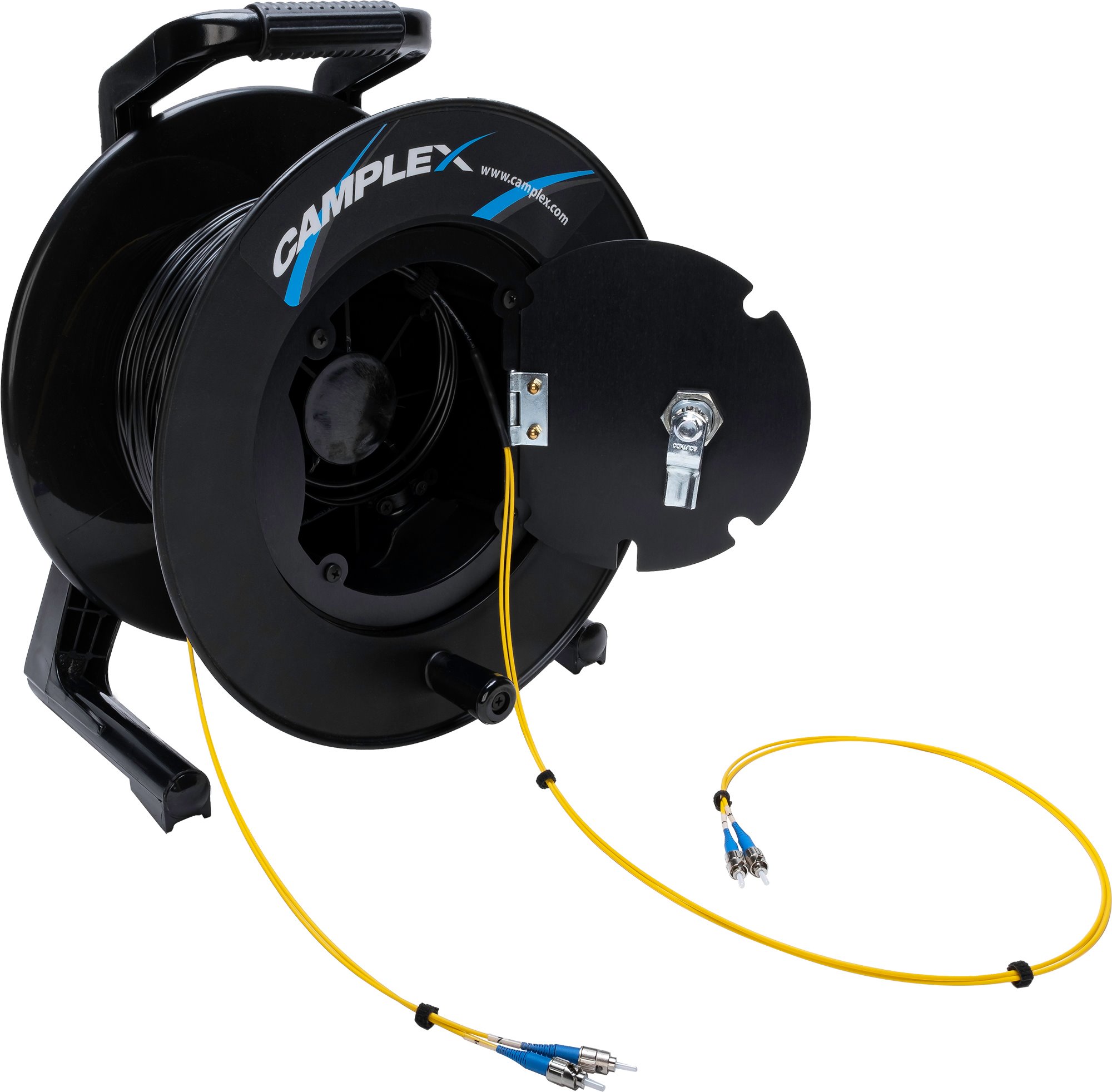

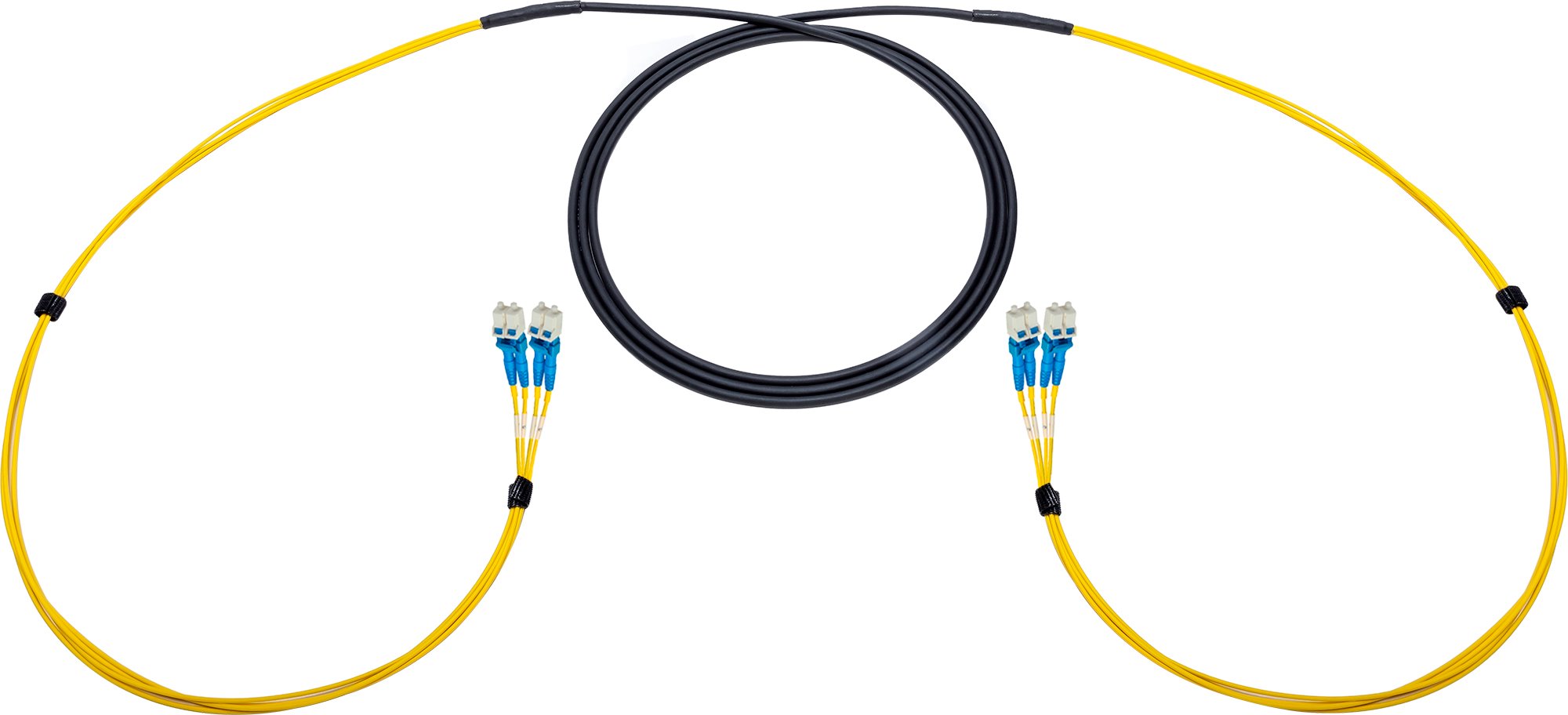

TiniFiber 2, 4 & 12-Channel LC-Single Mode Armored Tactical Fiber Optic Snakes & Reels

The Camplex TiniFiber armored tactical fiber series features 2, 4, and 12 channel lightweight armored snakes and reels complete with LC and ST fiber options. Featuring Micro Armor FiberÖ, an optical fiber cable that is 75% lighter than its competitors, yet highly durable and flexible. These assemblies are built to deliver seamless end-to-end transmission in a smaller and lightweight build. Available in a variety of channel count, connector, and length options.

Features:

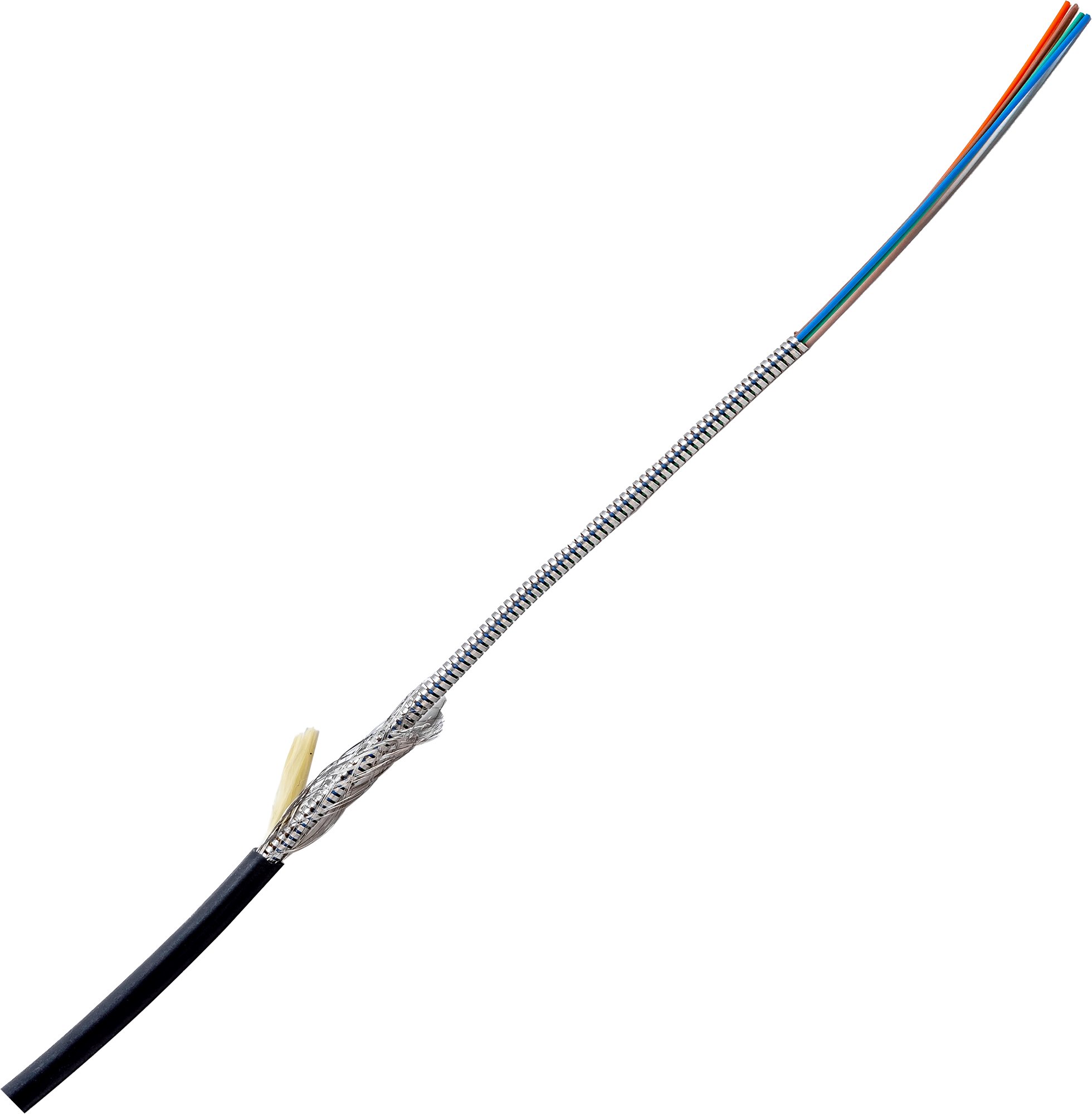

• Features Micro Armor Fiber™
• Lightweight Armored Polyurethane
• Tight-Buffered Fiber
• Water Block Yarn
• Color Coded Fiber
• Large Tensile Strength and Flexibility

Specifications:

• Fiber Count: 2, 4 or 12
• Storage Temperature: -40°C to 80°C (-40°F to 176°F)
• Operating Temperature: -40°C to 80°C (-40°F to 176°F)
• Max Dynamic Tensile Strength: 200 N
• Max Dynamic Crush Resistance: 5000 N
• Minimum Dynamic Bend Radius: 110 mm / 4.3 in
• Minimum Static Bend Radius: 88 mm / 2.2 in
• Nominal Outer Diameter: 3.0 mm
• Wavelengths / Max Attenuation: 1310 | ≤ 0.35dB/kmG1550 | ≤ 0.25dB/km
• Fiber Core / Cladding Diameter: 9/125 mm
• NEC Rating: OFCR

CMX-TFS02ST-0010
