CWDM Multiplexers / Demultiplexers

Sorry, no canvas available
CMX-CWDM-4C4753 : 4 Channel Passive CWDM Multiplexers / Demultiplexers CMX-CWDM-4C4753 : 4 Channel Passive CWDM Multiplexers / Demultiplexers CMX-CWDM-4C4753 : 4 Channel Passive CWDM Multiplexers / Demultiplexers CMX-CWDM-4C4753 : 4 Channel Passive CWDM Multiplexers / Demultiplexers

Easily add more channels to existing fiber infrastructure with bi-directional, passive CMX-CWDM coarse wavelength division multiplexers and demultiplexers. The Camplex Mux/Demux series avoids the expense of additional fiber cables and installation costs while increasing bandwidth by sending 3 to 18 signals over a single fiber optic cable. The mux combines signals to transmit over the fiber cable and the demux separates the signals at the receiver end.

Models are available with 3, 4, 5, 8, 9, or 18 channels and in various wavelengths. Individual pigtails are labeled with corresponding wavelengths.

  • CMX-CWDM-3C4749 : 3 Channel - Wavelengths: 1470nm, 1490nm, 1310nm
  • CMX-CWDM-3C5153 : 3 Channel - Wavelengths: 1510nm, 1530nm, 1310nm
  • CMX-CWDM-3C5557 : 3 Channel - Wavelengths: 1550nm, 1570nm, 1310nm
  • CMX-CWDM-3C5961 : 3 Channel - Wavelengths: 1590nm, 1610nm, 1310nm
  • CMX-CWDM-4C4753 : 4 Channel - Wavelengths: 1470nm, 1490nm, 1510nm, 1530nm
  • CMX-CWDM-4C5561 : 4 Channel - Wavelengths: 1550nm, 1570nm, 1590nm, 1610nm
  • CMX-CWDM-5C4753 : 5 Channel - Wavelengths: 1470nm, 1490nm, 1510nm, 1530nm, 1310nm
  • CMX-CWDM-5C5561 : 5 Channel - Wavelengths: 1550nm, 1570nm, 1590nm, 1610nm, 1310nm
  • CMX-CWDM-8C2741 : 8 Channel - Wavelengths: 1270nm, 1290nm, 1310nm, 1330nm, 1350nm, 1370nm, 1390nm, 1410nm
  • CMX-CWDM-8C4761 : 8 Channel - Wavelengths: 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm
  • CMX-CWDM-9C4761 : 9 Channel - Wavelengths: 1470nm, 1490nm,1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm, 1310nm
  • CMX-CWDM-18C2761 : 18 Channel - Wavelengths: 1270nm, 1290nm,1310nm, 1330nm, 1350nm, 1370nm, 1390nm, 1410nm, 1430nm, 1450nm, 1470nm, 1490nm,1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm

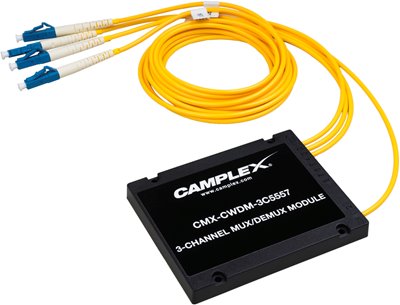

CMX-CWDM-3C5557

3 Channel CWDM Multiplexer & Demultiplexer with LC Fiber Pigtails - 3 Ft
Wavelengths: 1550nm, 1570nm and 1310nm

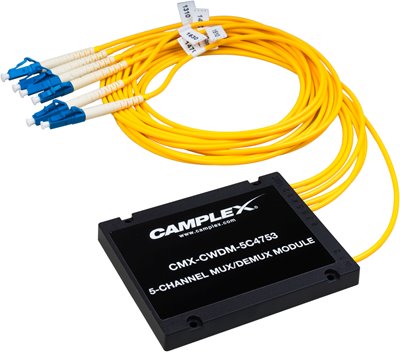

CMX-CWDM-5C4753

5 Channel CWDM Multiplexer & Demultiplexer with LC Fiber Pigtails - 3 Ft
Wavelengths: 1470nm, 1490nm, 1510nm, 1530nm and 1310nm

  •  Use existing fiber infrastructure & save conduit space
  •  Reduce fiber installation & cleaning labor
  •  Bi-directional, passive units
  •  Low insertion loss & high channel isolation
  •  Wide passband
  •  Utilizes thin film filter & MicroOptics technology
  •  2mm furcated, 3 foot fiber cables
  •  LC connectors
  •  Channel spacing 20nm
  •  Isolation (Demux) adjacent channel ≥30dB
  •  Non-adjacent channel ≥40dB
  •  Return loss ≥45dB
  •  Rugged ABS enclosure
